Item: 0X90057

Delivery: FREE

£19.99 In Stock


QS-40 is a quick shoe with 3/8" thread for Vanguard tripods that is compatible with models such as:

  • Alta Pro (original)
  • SBH-Heads

For a fuller list of models please see the long description

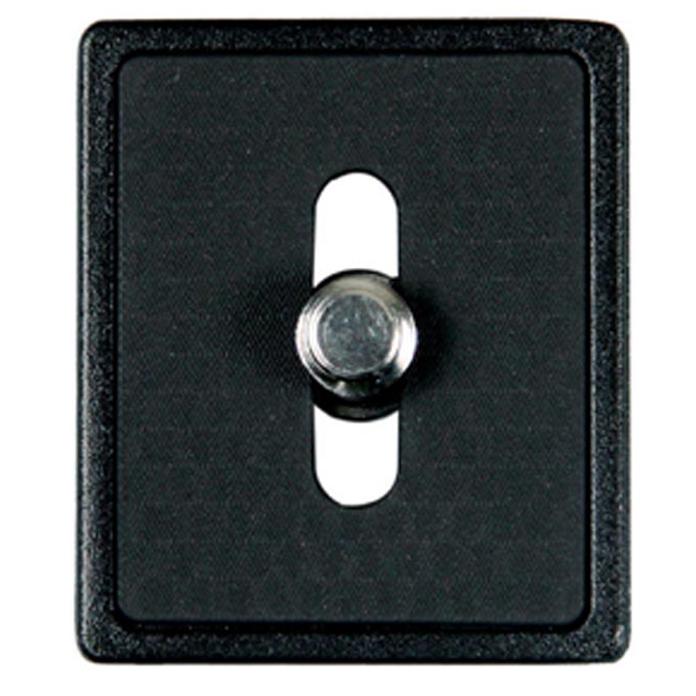

QS-40 is a proprietary Vanguard quick shoe with 3/8" camera screw and pin.

Suitable for models such as:

  • PH-35 Head
  • PH-50 Head
  • PH-55 Head
  • SBH-100
  • SBH-250
  • SBH-30
  • SBH-50
Product Style Quick Release Plate Quick Release Plate
Arca Swiss Compatible No No
Top Plate Dimensions (L x W) 1.97 x 1.46 inches 50 x 37mm
Top Plate Shape Rectangle Rectangle
Base Dimensions (L x W) 1.97 x 1.61 inches 50 x 41mm
Able To Rotate By 90 Degrees On Tripod Head No No
Camera Attachment Thread Size 3/8 inch 3/8 inch
How Tightens Onto Camera Slot (for coin or screwdriver) Slot (for coin or screwdriver)
Anti Twist Pin No No
Able To Adjust Thread Position On Plate Yes (up to 1 inch) Yes (up to 25mm)
Warranty 1 Year 1 Year
Extended Warranty 4 Years 4 Years
Series Quick Shoe Quick Shoe
