VEO 5 CM-234TR 23mm Carbon Monopod with Tri-Feet
Item: VGTVEO5CM234TR
Delivery: FREE
Overview

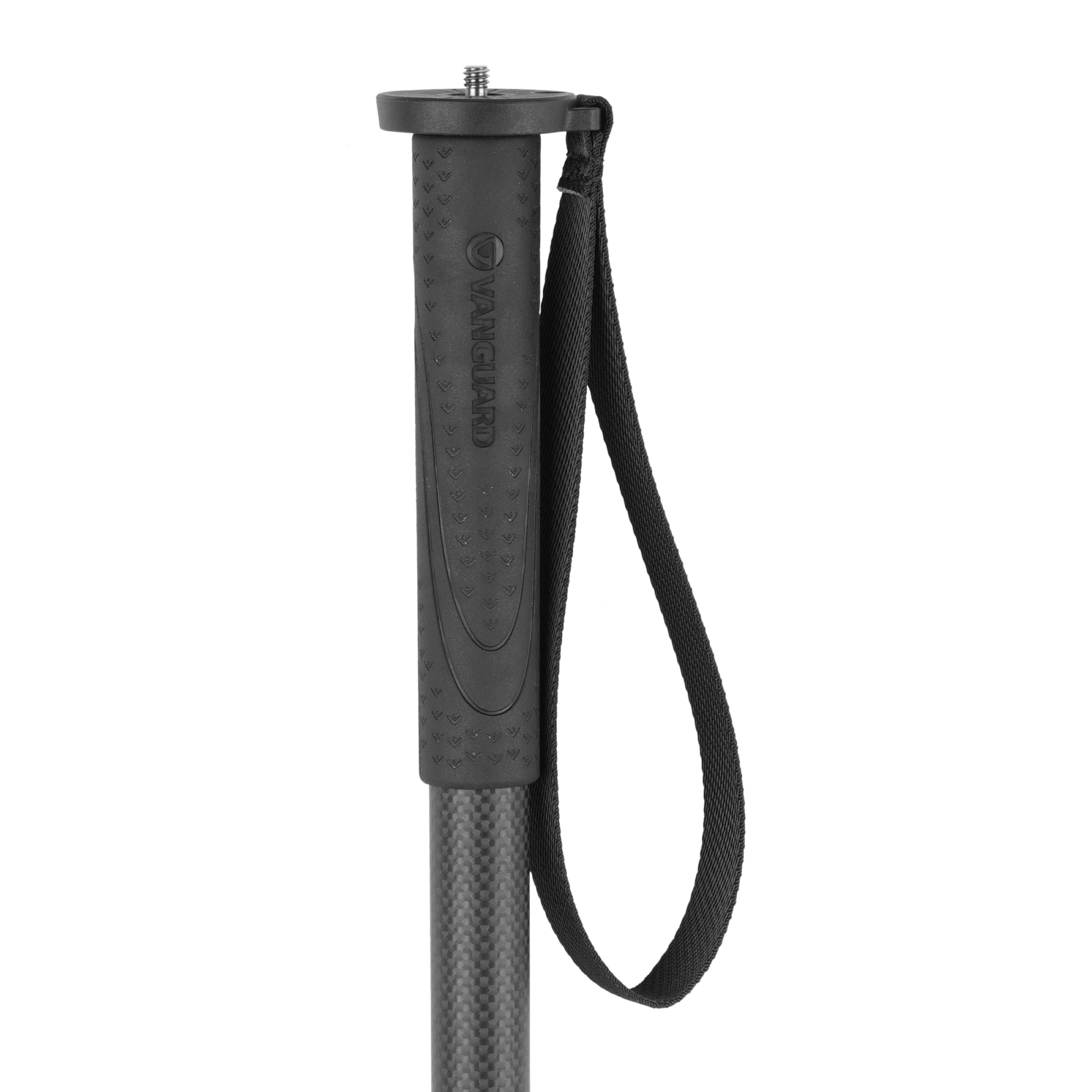

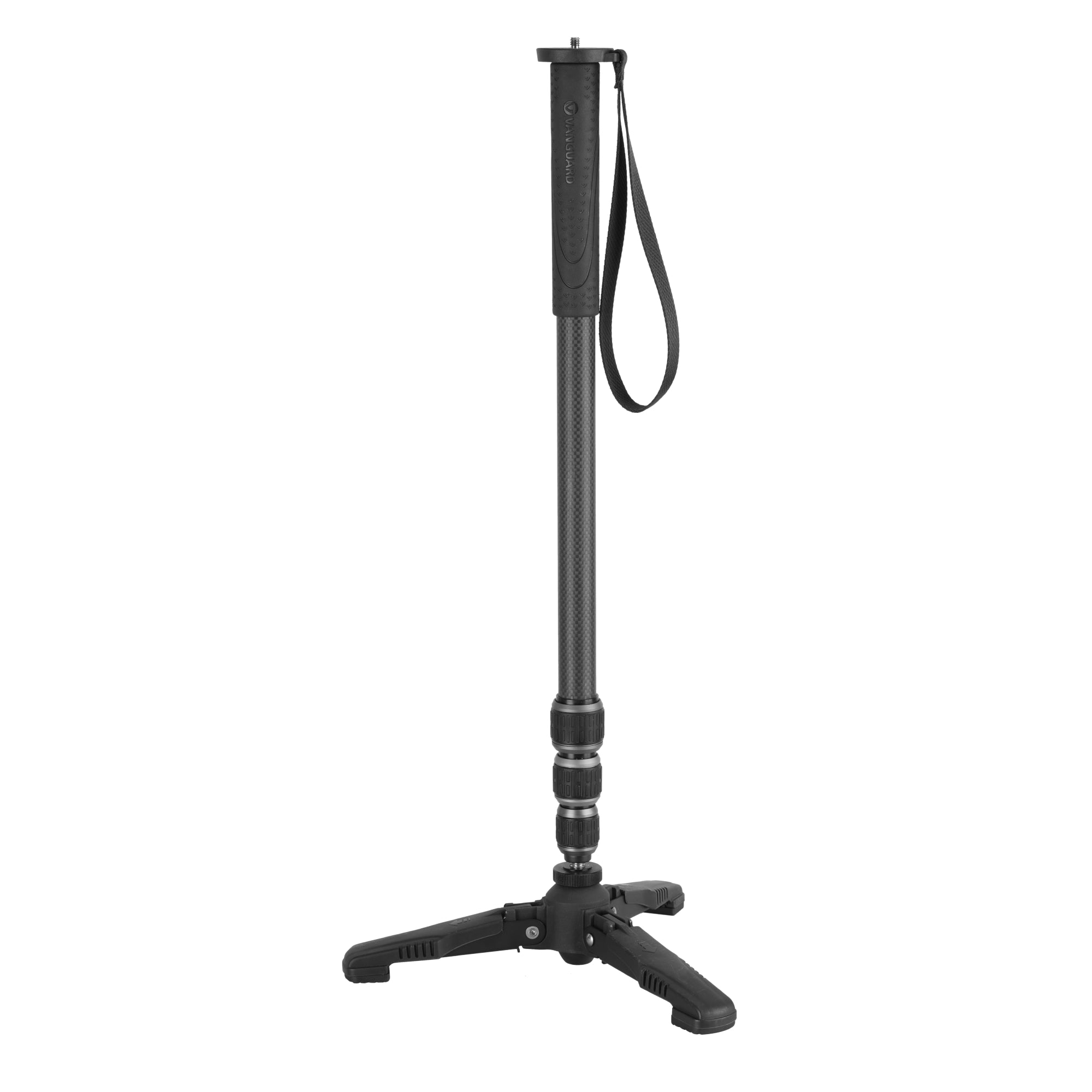

The Vanguard VEO 5 CM-234TR is a lightweight and portable carbon fibre monopod with foldable tri-feet for added stability. Great for shooting photo or video where you need more stability than a traditional monopod and a tripod isn't practical.
- Compact 4-section 23mm carbon fibre monopod with 1/4" thread
- Weighs 680g with maximum load capacity of 12kg
- Folds down to 55cm and extends to 150cm
- Foldable tri-feet allow for enhanced stability with minimal footprint
- Advanced easy clean twist-leg locks to set up the monopod in seconds
Click here to see the full range of Vanguard monopods
The Vanguard VEO 5 CM-234TR is a lightweight and portable carbon fibre monopod with foldable tri-feet for added stability. Whether you're looking to lighten your load, or need additional stability in a location where a tripod won't work, this monopod offers the portability you'd expect with increased stability and functionality over a traditional monopod while maintaining a tiny footprint.
The 23mm carbon monopod leg weighs just 680g and can take a maximum load capacity of 12kg, more than enough to cope with all but the largest DSLR or Mirrorless kits.

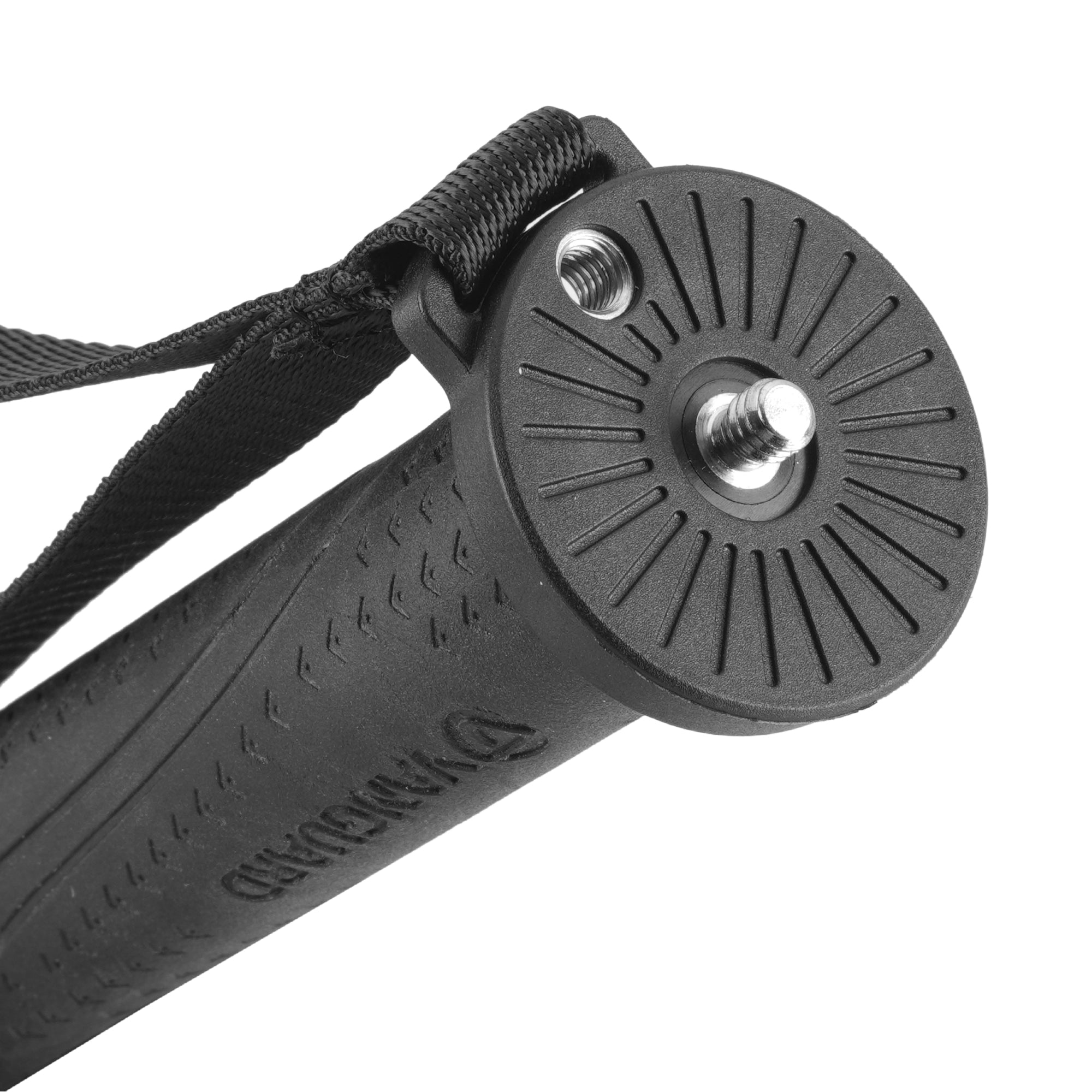

Mount your camera directly on to the monopod 1/4" thread (or using a 3/8" adaptor), or for more control you can attach a:
- BH-50 Ball Head - Lightweight Arca compatible option.
- Levelling Adaptor 45 - Tilts ±15° and rotates 360° (included on the VEO 5 CM-Sport 23)

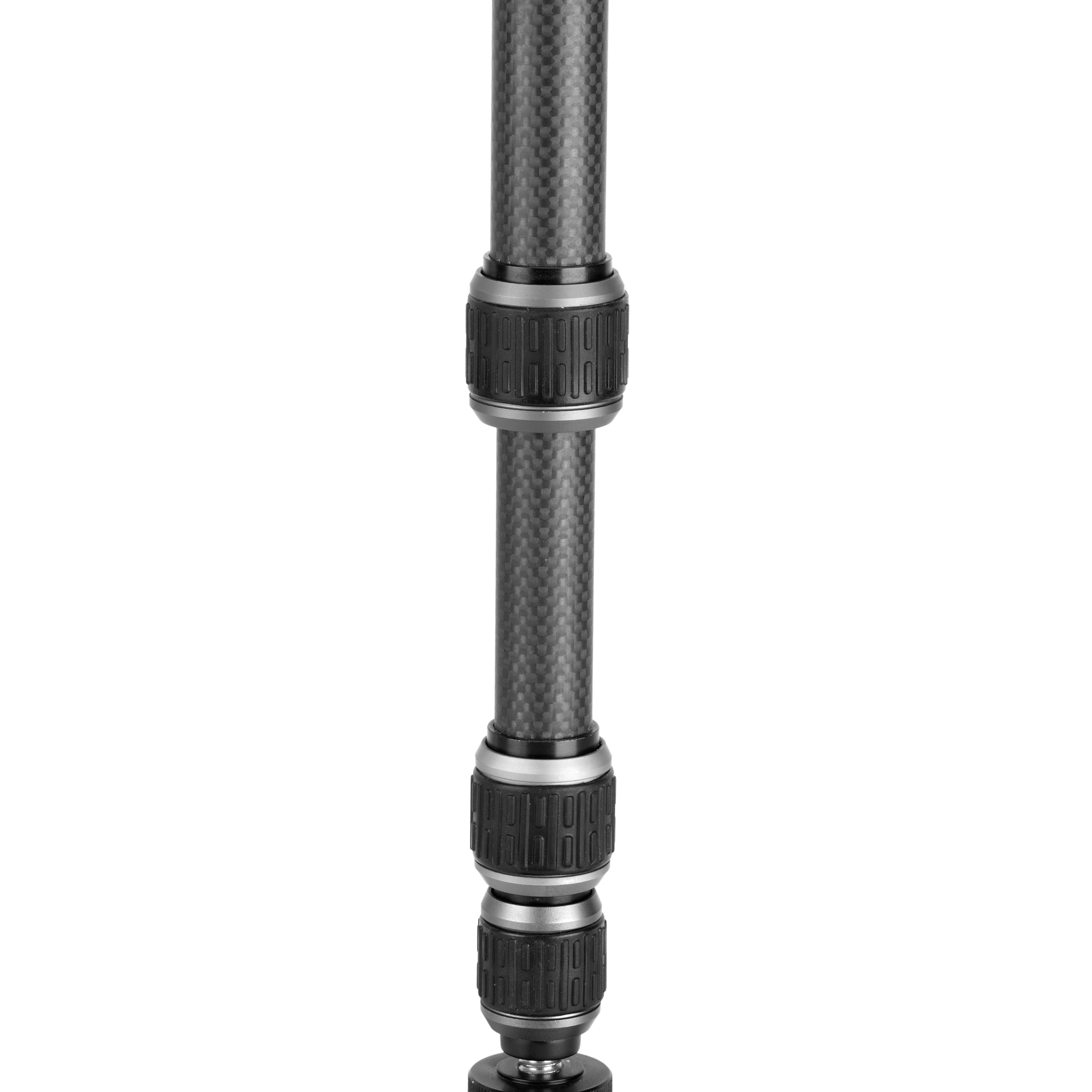

The easy clean twist leg locks allow set-up in seconds and rapid height adjustments, allowing you to shoot at the level you need for the shot, from 55cm to 150cm, and anywhere in between. For full cleaning instructions, view our blog (they are the same style of leg locks as the VEO 3 series of tripods).

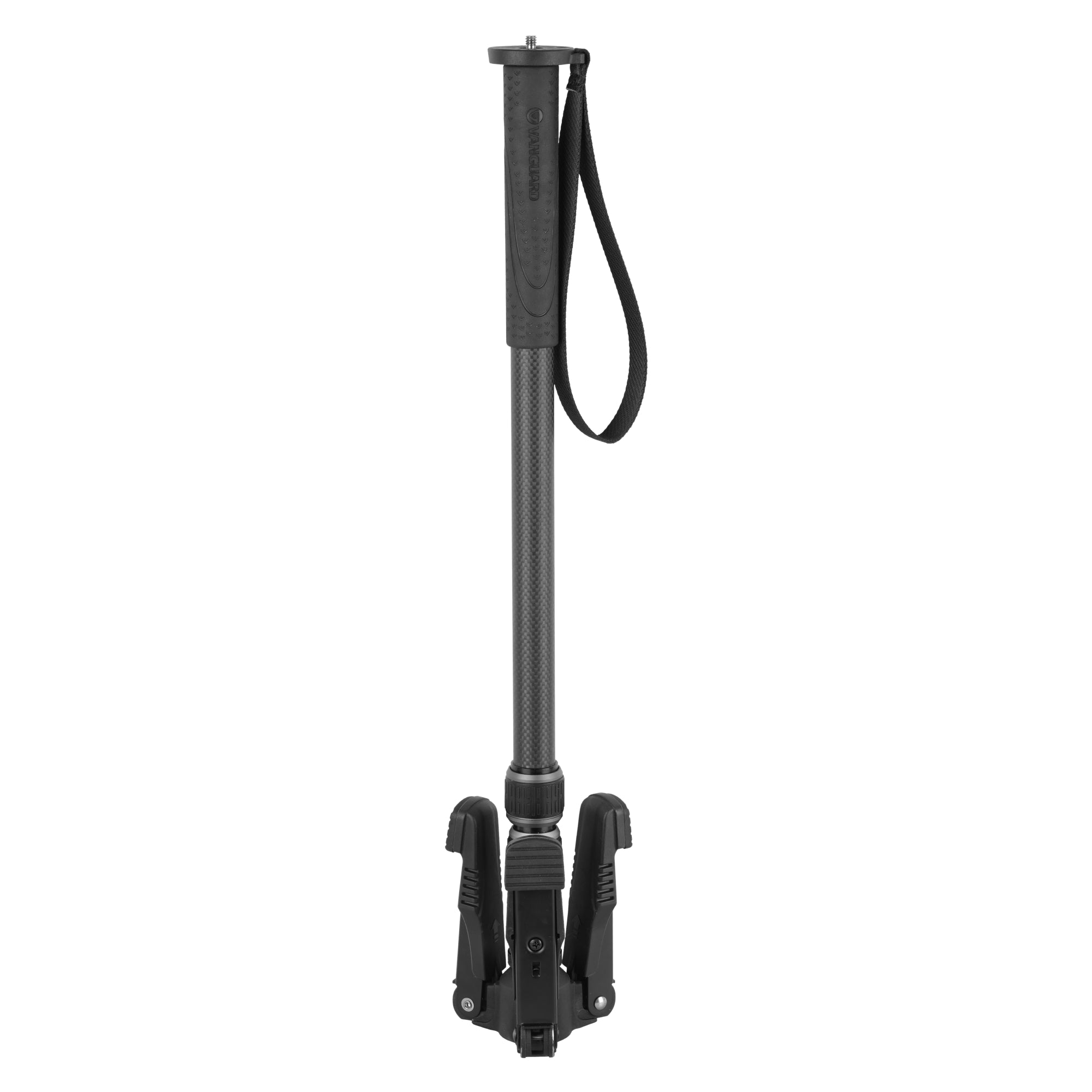

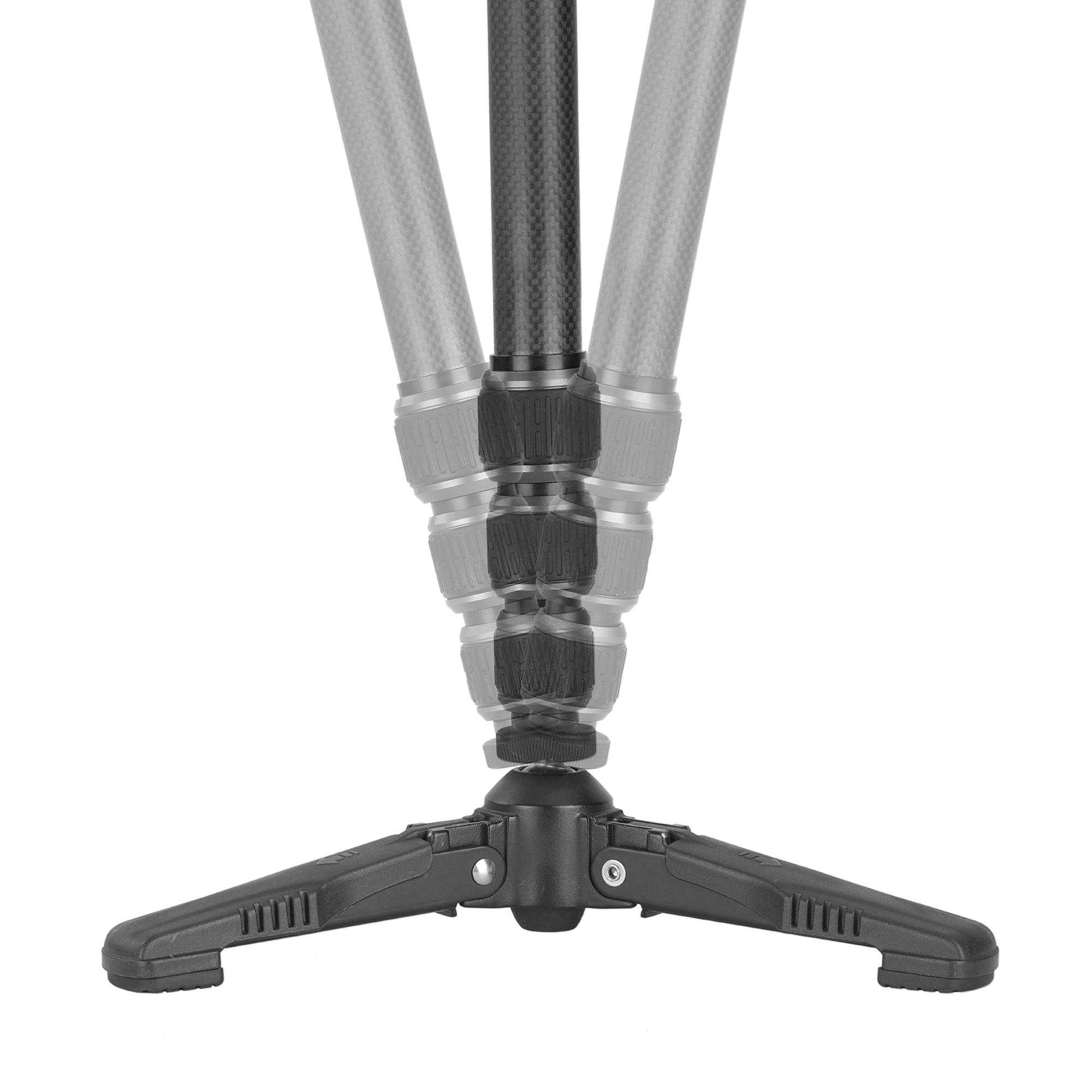

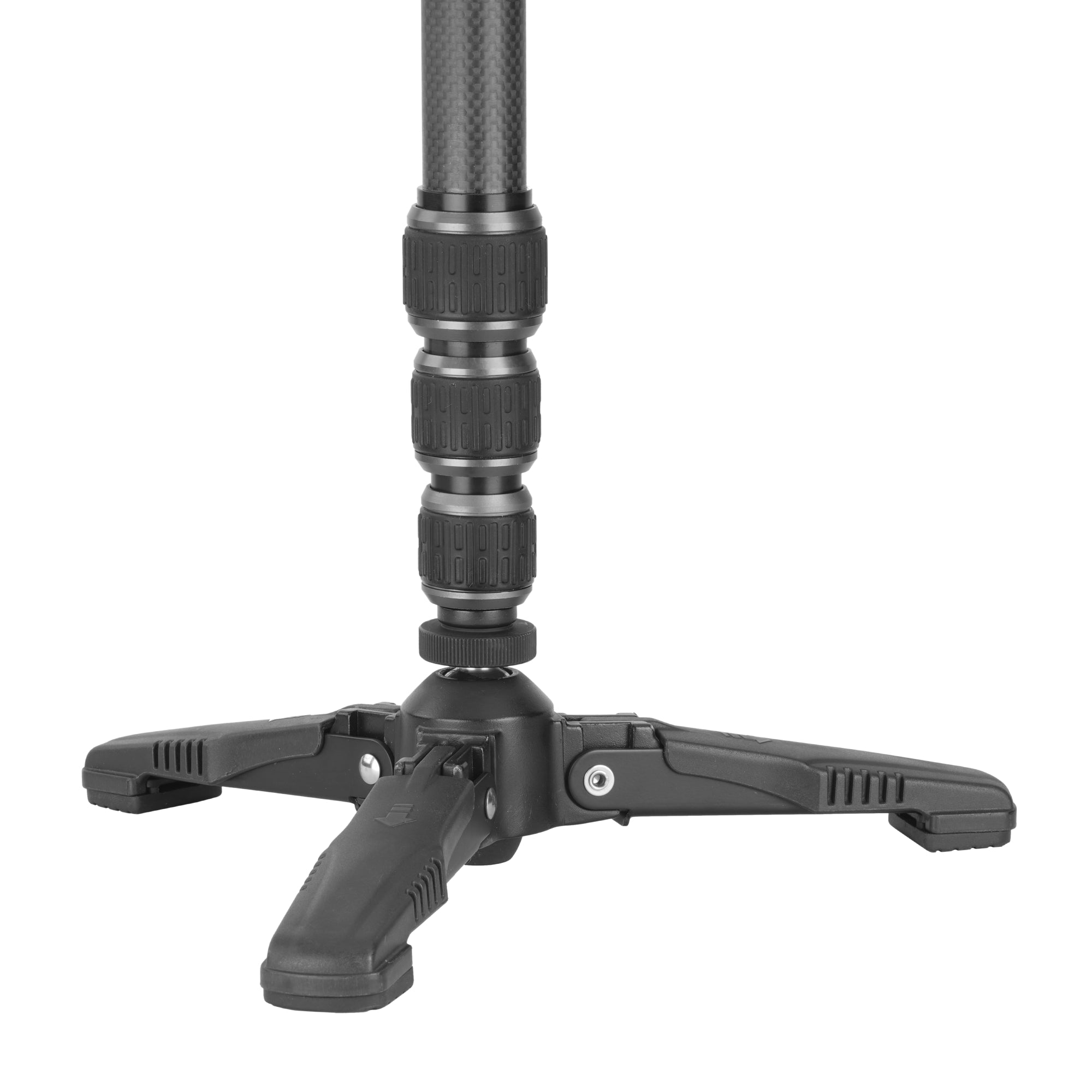

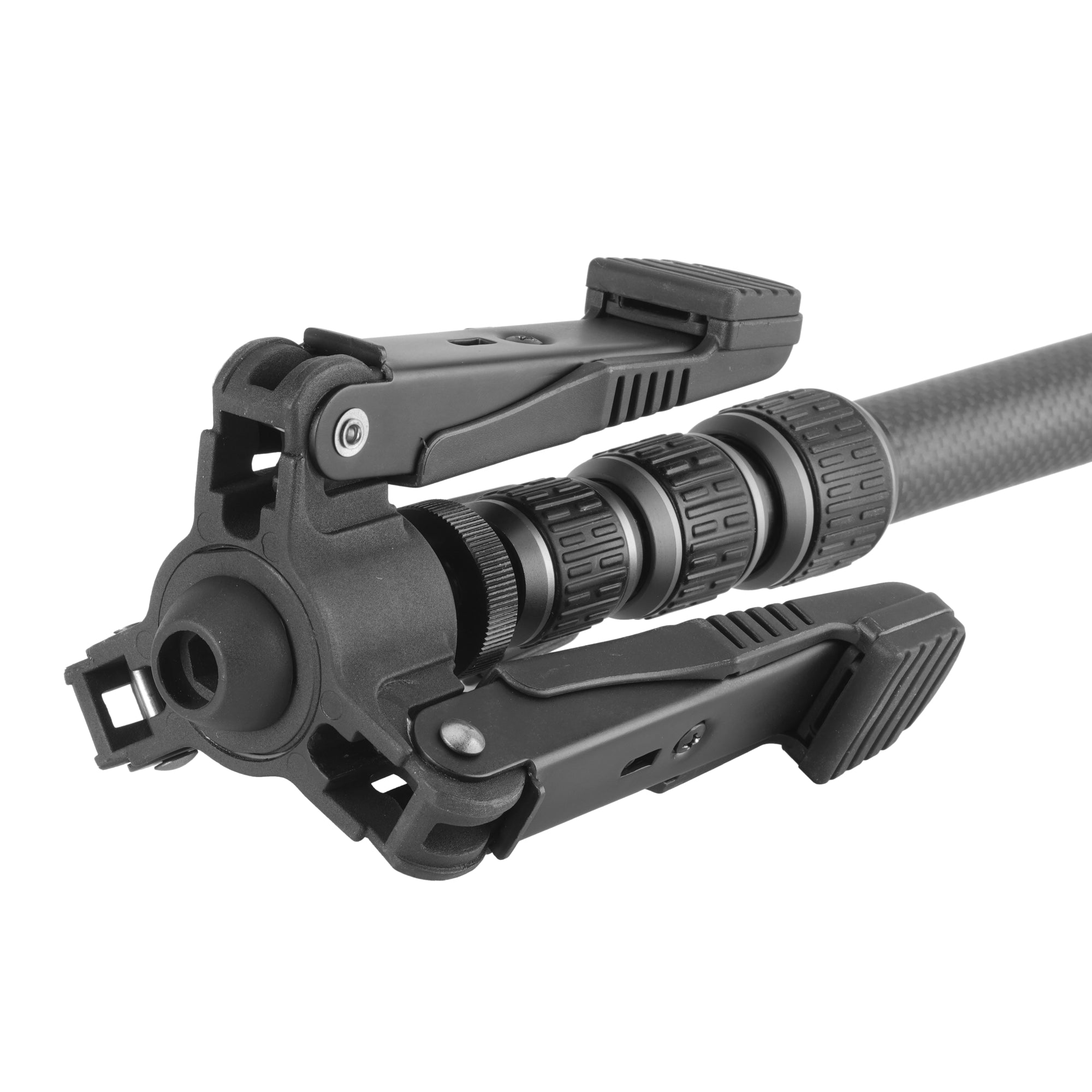

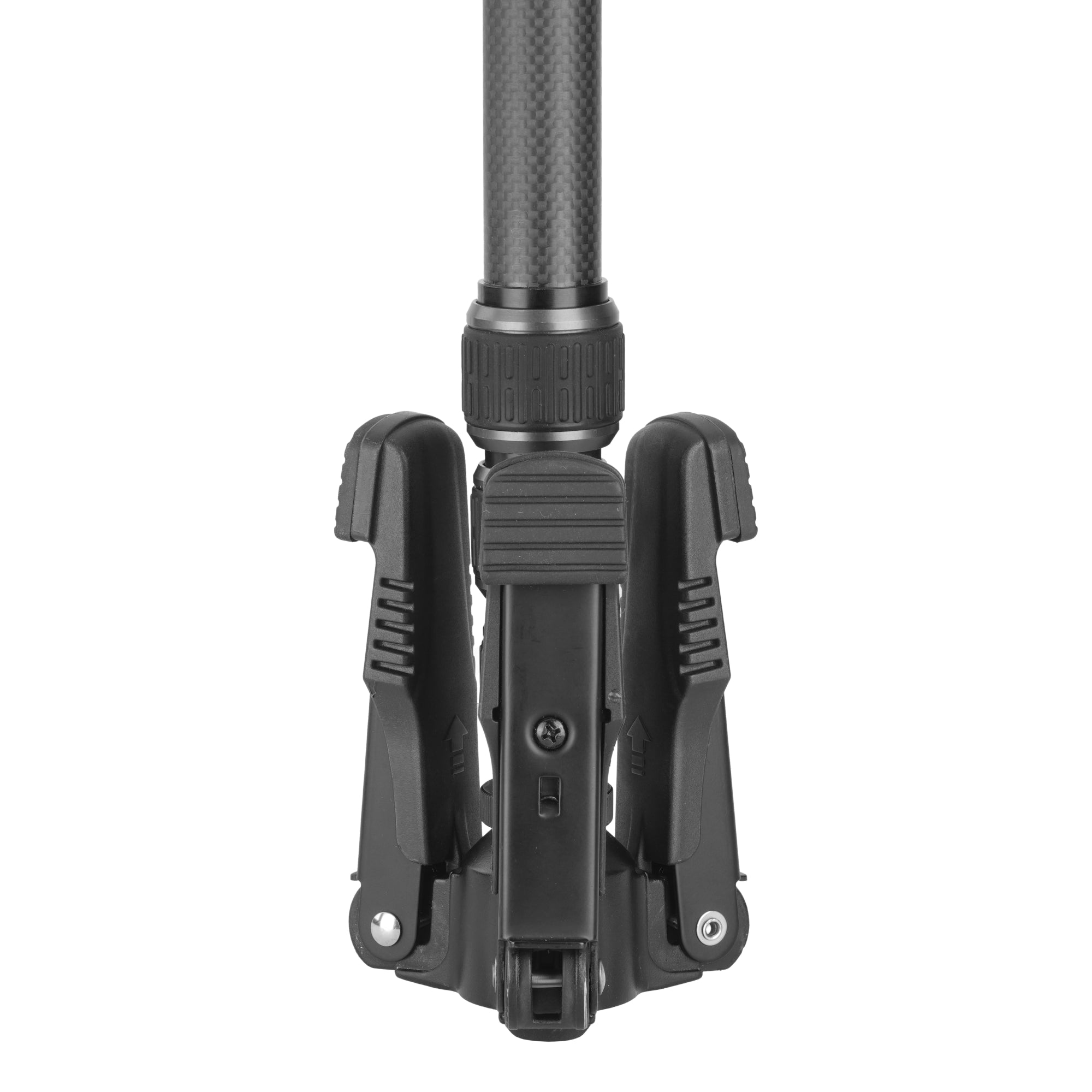

The tri-feet are permanently attached and flip up for transporting the monopod, then deploy in seconds with just a finger. The base also includes a ball joint which can be tightened for maximum stability, or loosened to allow more dynamic movement, for example, tracking a moving subject. In addition, the tri-feet allows you to pan using the monopod itself
|
Feature |
VEO 5 CM-234TR |
VEO 5 CM SPORT 23 |
VEO 5 CM-264TR |
VEO 5 CM SPORT 26 |
|
Levelling |
- |
Levelling Adaptor 45 |
- |
Levelling Adaptor 45 |
|
Movement |
- |
Tilts ±15° and rotates 360° |
- |
Tilts ±15° and rotates 360° |
|
Thread |
1/4” |
1/4” |
1/4” |
1/4” |
|
Top Plate Diameter |
45mm |
47mm |
45mm |
47mm |
|
Leg Diameter |
23mm |
23mm |
26mm |
26mm |
|
Material |
Carbon Fibre |
Carbon Fibre |
Carbon Fibre |
Carbon Fibre |
|
Extended Height |
150cm |
154cm |
162cm |
166cm |
|
Folded Height |
55cm |
59cm |
55cm |
59cm |
|
Load Capacity |
12kg |
12kg |
15kg |
15kg |
|
Weight |
680g |
820g |
725g |
865g |
So if you need more stability than a traditional monopod can provide, but don't have the space to set up a tripod, then a VEO 5 Monopod may be the perfect choice, or click here to see all the monopods available from Vanguard.
Please note that monopods with tri-feet are not designed to be left unattended with a camera attached as the the smaller footprint means that they are easier to knock over.
| Tripod Style | Monopod with Tri-Feet | Monopod with Tri-Feet |
|---|---|---|
| Feet Type | Tri-Feet | Tri-Feet |
| Material | Carbon Fibre | Carbon Fibre |
| Weight | 1.5lbs | 680g |
| Folded Length | 21 2/3 inches | 550mm |
| Maximum Height | 59 inches | 1500mm |
| Minimum Height | 21 2/3 inches | 550mm |
| Maximum Load Capacity | 26.5lbs | 12kg |
| Leg Diameter | 0.9 inch | 23mm |
| Leg Sections | 4 | 4 |
| Leg Lock | 1/2 Turn Twist | 1/2 Turn Twist |
| Head Attachment Thread | 1/4" | 1/4" |
| Tripod Head | None | None |
| Monopod Bag Included | No (can use VEO Action 60) | No (can use VEO Action 60) |
| Accessories | 3mm hex key | 3mm hex key |
| Suitable For Mirrorless | Yes | Yes |
| Suitable For DSLR | Yes | Yes |
| Suitable For Pro Kit | - | - |
| Warranty | 2 Years | 2 Years |
| Extended Warranty | 10 Years | 10 Years |
| Series | VEO 5 Monopod | VEO 5 Monopod |
| Colour | Carbon Fibre | Carbon Fibre |
| Other | Ball-joint at base of monopod allows for different levels of stability, and to use the monopod to pan | Ball-joint at base of monopod allows for different levels of stability, and to use the monopod to pan |
