VEO BH-250S Arca Compatible Dual Axis Ball Head (to 25kg)

VEO BH-250S Arca Compatible Dual Axis Ball Head (to 25kg)


Delivery: FREE

£139.99 In Stock


The VEO BH-250S is an Arca compatible ball head with a 25kg/55lbs load capacity, that incorporates Vanguard's Dual Axis System for maximum control and precision when framing your shot.

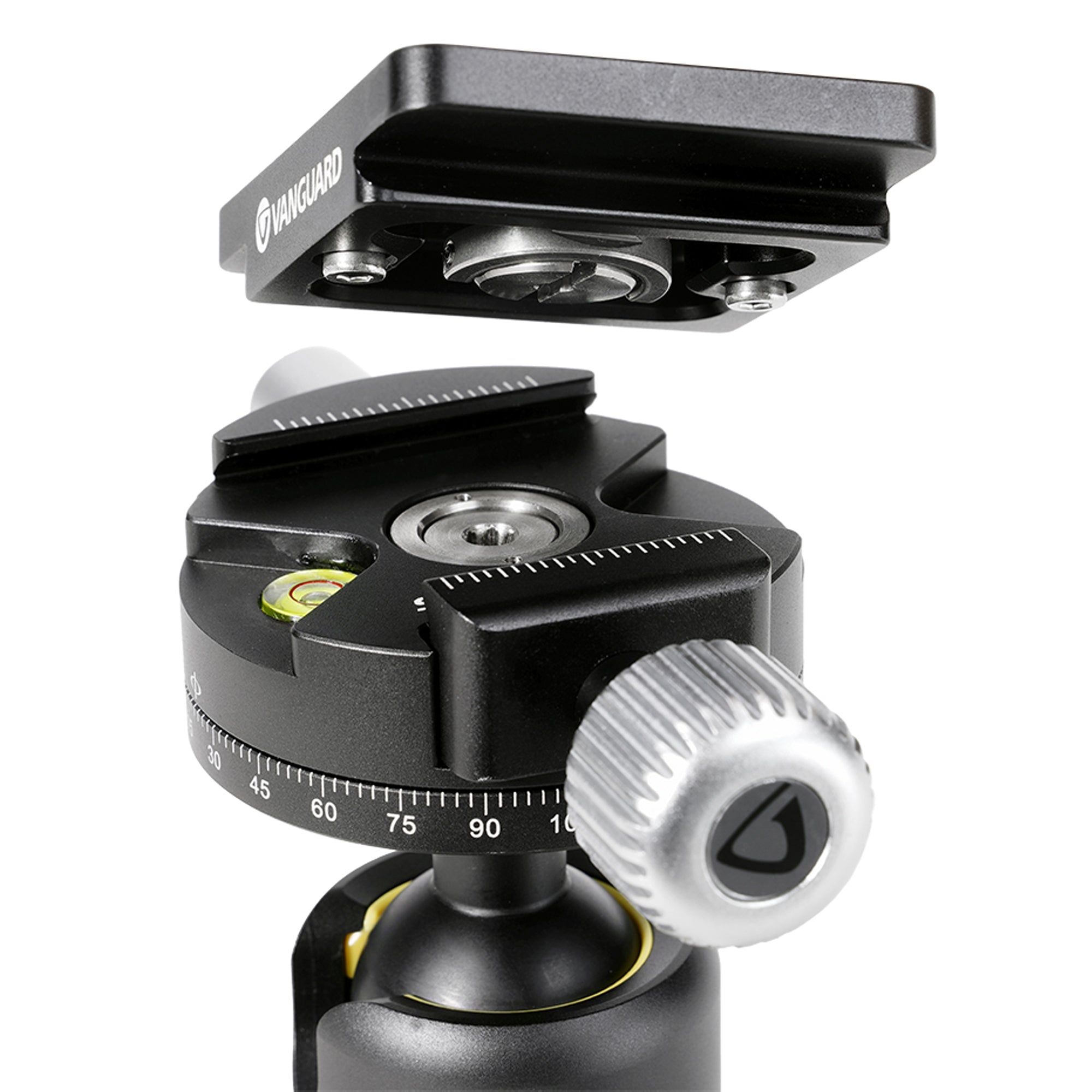

  • Arca compatible ball head with removable, anti-slip screws on the base of the quick release plate
  • Two 360° panning knobs, one on the base and the second under the quick release plate
  • Level your tripod in seconds using the head, no need to fuss with the tripod legs
  • 58mm diameter base and fits any tripod (includes fittings for 3/8" or 1/4" threads)
  • Precision CNC machined from aircraft-grade aluminium for maximum stability

Once you've experienced the versatility of the new dual axis system, you'll never go back, as you can see with this 4.5 star review by Camera Jabber. To see the full range, click here and #MakeUpYourOwnMind


The VEO BH-250S is an Arca compatible ball head that introduces a second pan axis under the quick release plate mount to deliver maximum control in framing your perfect shot.

One of the key benefits of the dual axis is that it allows you to level your tripod in seconds on any terrain for perfect panoramas, without needing to fuss around with the legs. Simply make sure your tripod is steady and level the head and you're ready to go, using the top axis to frame or pan your photo.

Alternatively, the dual axis ball head allows you make micro adjustments using the most appropriate axis, without needing to loosen the main ball joint and risk losing the overall setup.

Despite weighing in at just 645g with a 38mm ball, this head has a maximum load capacity of 25kg/55lbs and is machined from aircraft grade aluminium using the latest CNC technology.  This means that as well as holding almost any kit, the movement is incredibly precise due to the mirror smooth finish that CNC production delivers.

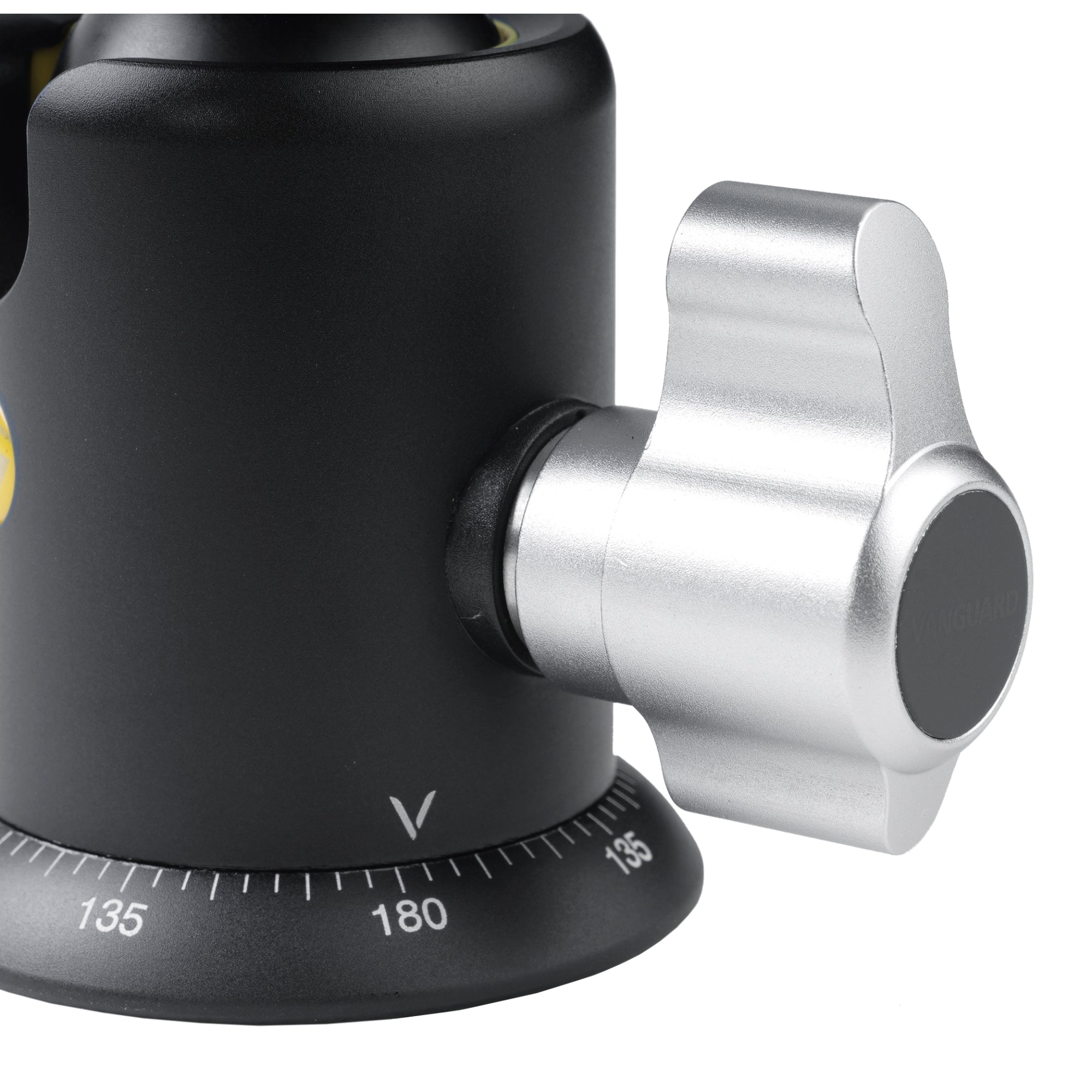

The head includes easy grip locking knobs, and the top pan locking knob and the main ball locking knob can be pulled out and repositioned to more convenient positions, without affecting the solidity of the head.

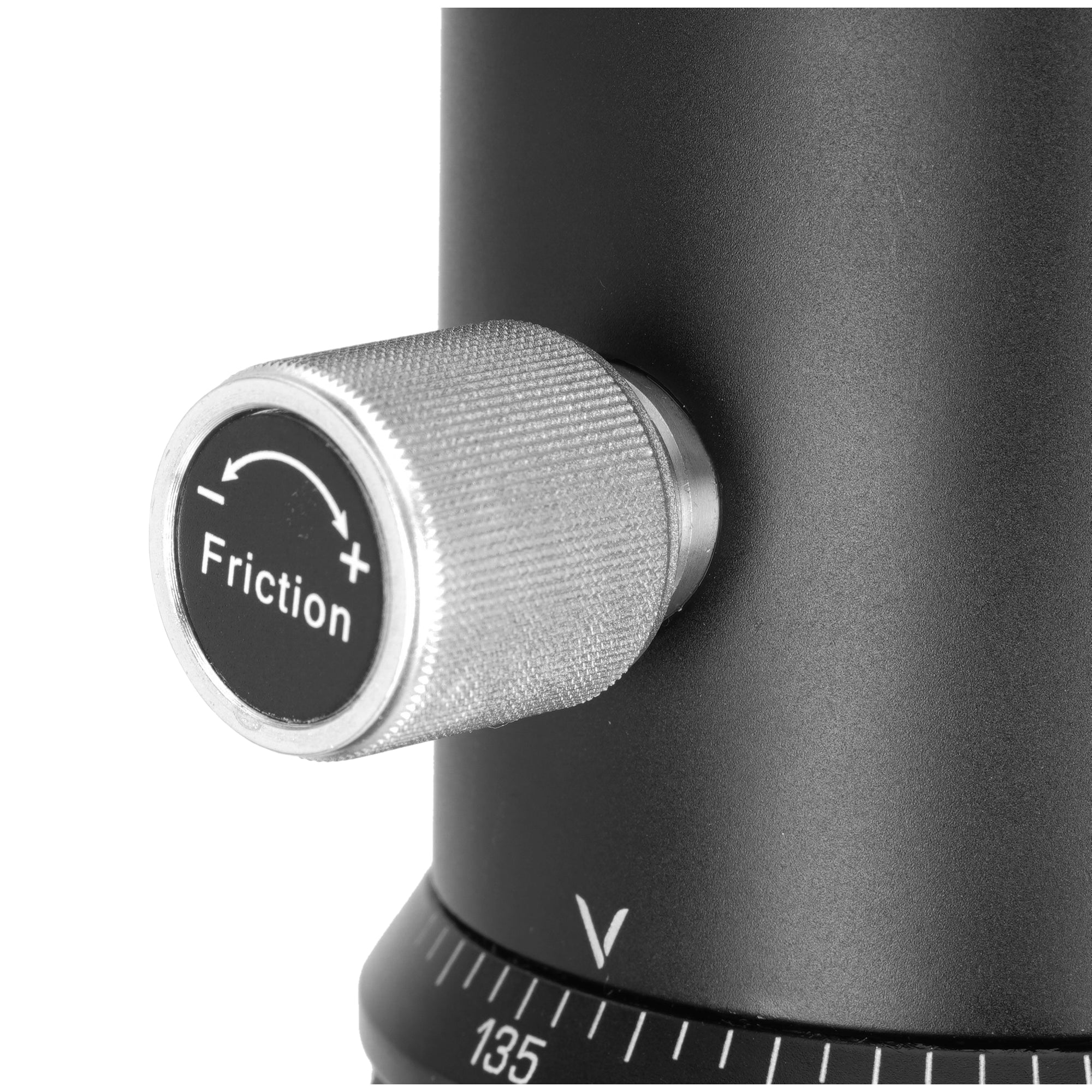

The VEO BH-250S also includes a friction control that allows more precise control when using a long lens at higher magnification.

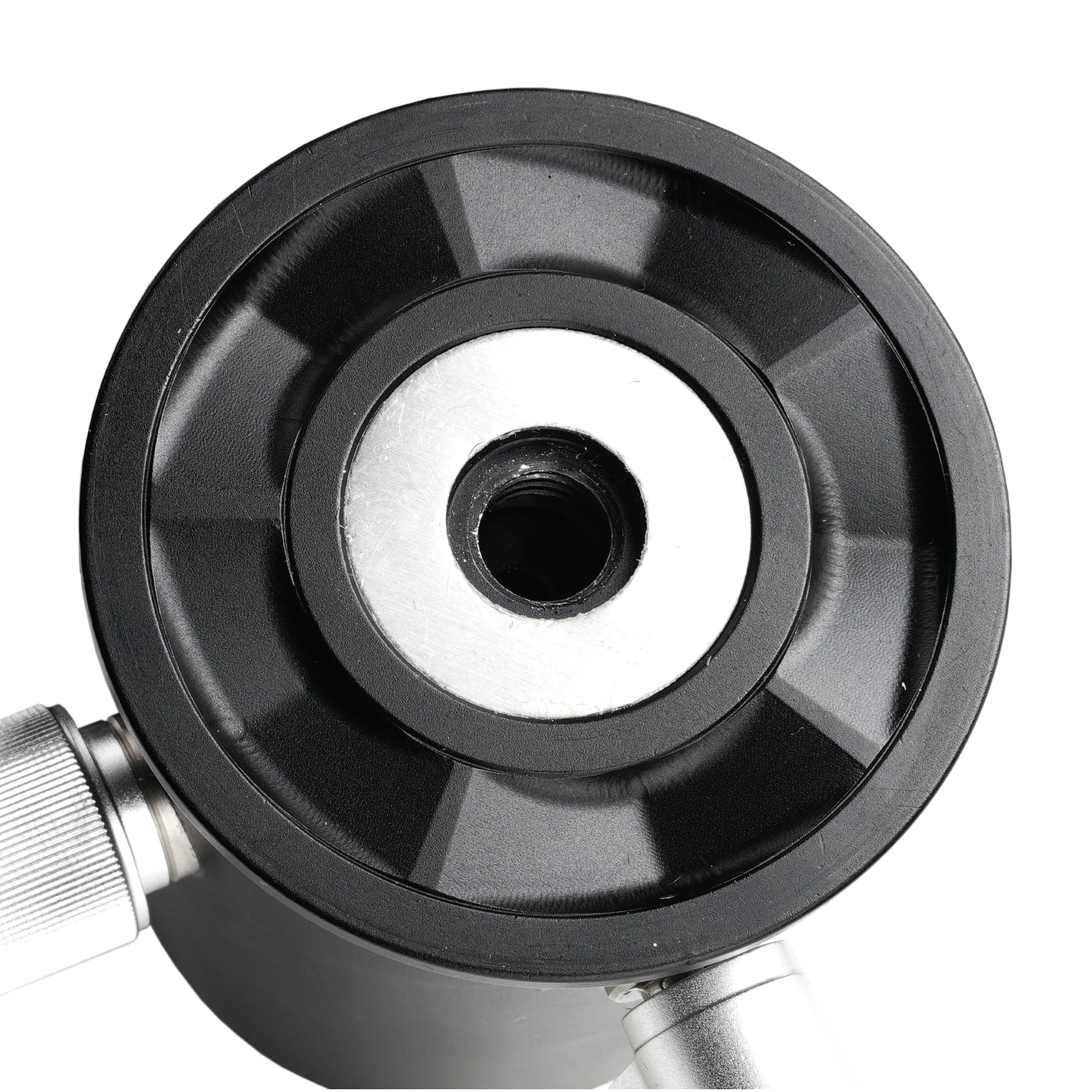

With a 58mm diameter base and the ability to fit any large tripod with a 3/8" thread (or any tripod with a 1/4" thread using the adaptor provided), this head is perfect for full-sized tripods, whatever the brand.

VEO BH Series specs

So if you're looking for an incredibly solid Arca ball head that won't let you down, check out the VEO BH Series and #makeupyourownmind

Product Reviews:

Head Style Ball Head Ball Head
Handles None None
Model Number VEO BH-250S VEO BH-250S
Arca Swiss Compatible Yes Yes
Quick Shoe QS-62 V3 QS-62 V3
Maximum Load Capacity 55lbs 25kg
Separate Pan Lock Yes (two) Yes (two)
Friction Control Yes Yes
Swivel 360° 360°
Spirit Bubble Levels 1 1
Width 4 1/6 inches 105mm
Height 4 3/4 inches 121mm
Base Diameter 2 4/5 inches 58mm
Head Attachment Thread 1/4" and 3/8" 1/4" and 3/8"
Weight 1.4lbs 645g
Accessories Quick Shoe and 1/4" to 3/8" adaptor thread included Quick Shoe and 1/4" to 3/8" adaptor thread included
Suitable For Mirrorless Yes Yes
Suitable For DSLR Yes Yes
Suitable For PRO Kit Yes Yes
Warranty 2 Years 2 Years
Extended Warranty 10 Years 10 Years
Series VEO Heads VEO Heads
Colour Black Black
Other Dual Axis for precise control Dual Axis for precise control
