VEO BH-160S Arca Compatible Dual Axis Ball Head (to 15kg)

VEO BH-160S Arca Compatible Dual Axis Ball Head (to 15kg)


Delivery: FREE

£119.99 In Stock

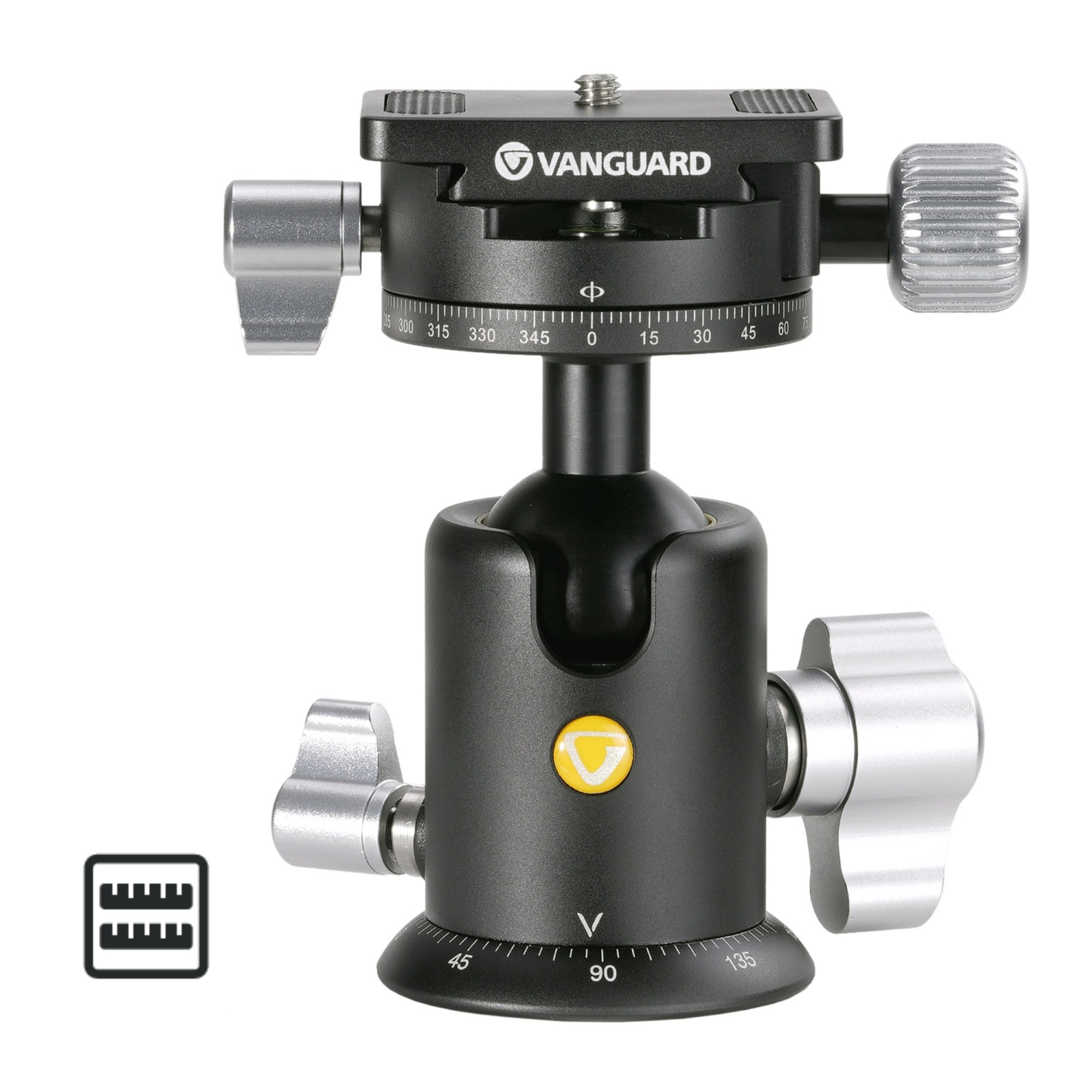

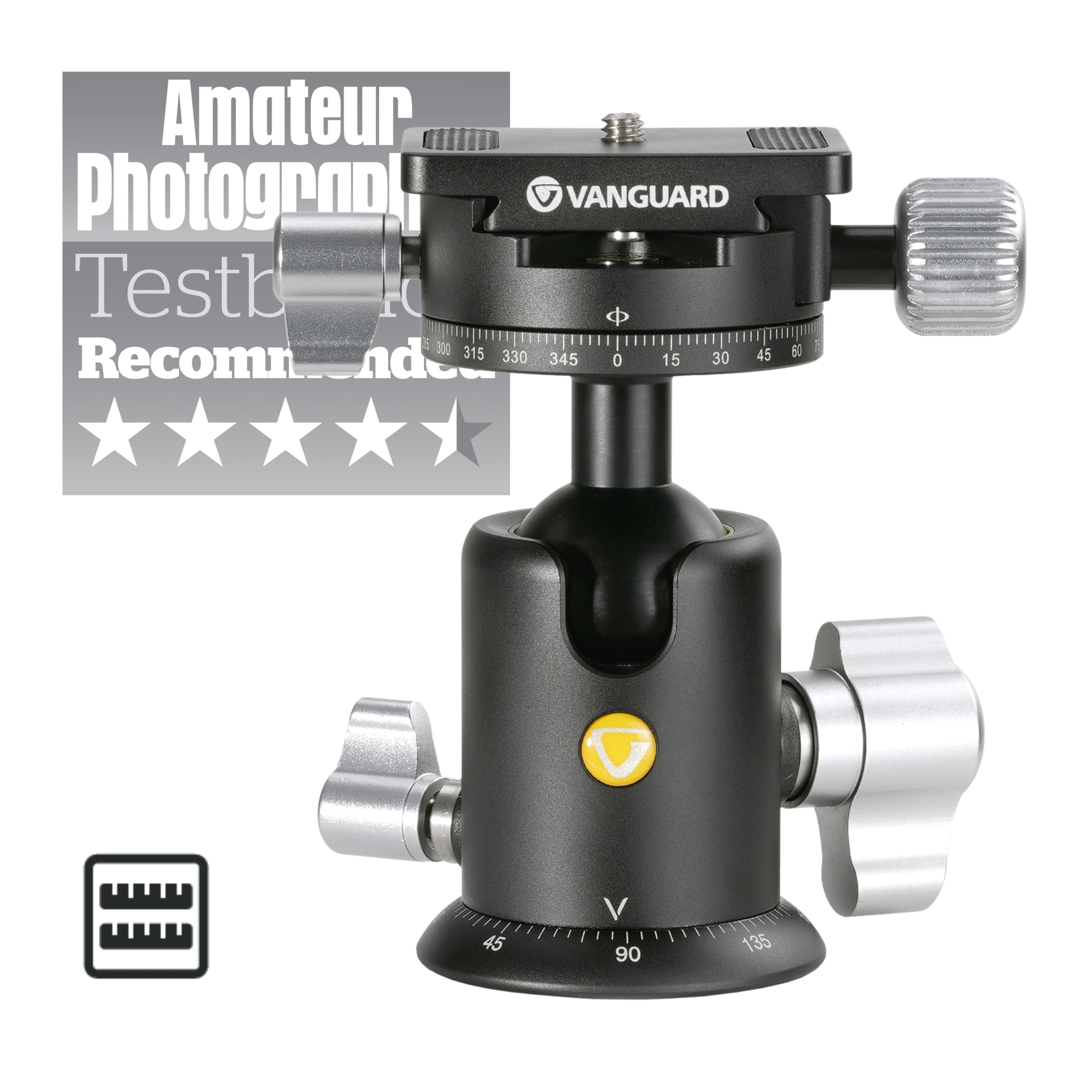

The VEO BH-160S is an Arca compatible ball head with a 15kg load capacity, that incorporates Vanguard's Dual Axis System for maximum control and precision when framing your shot.

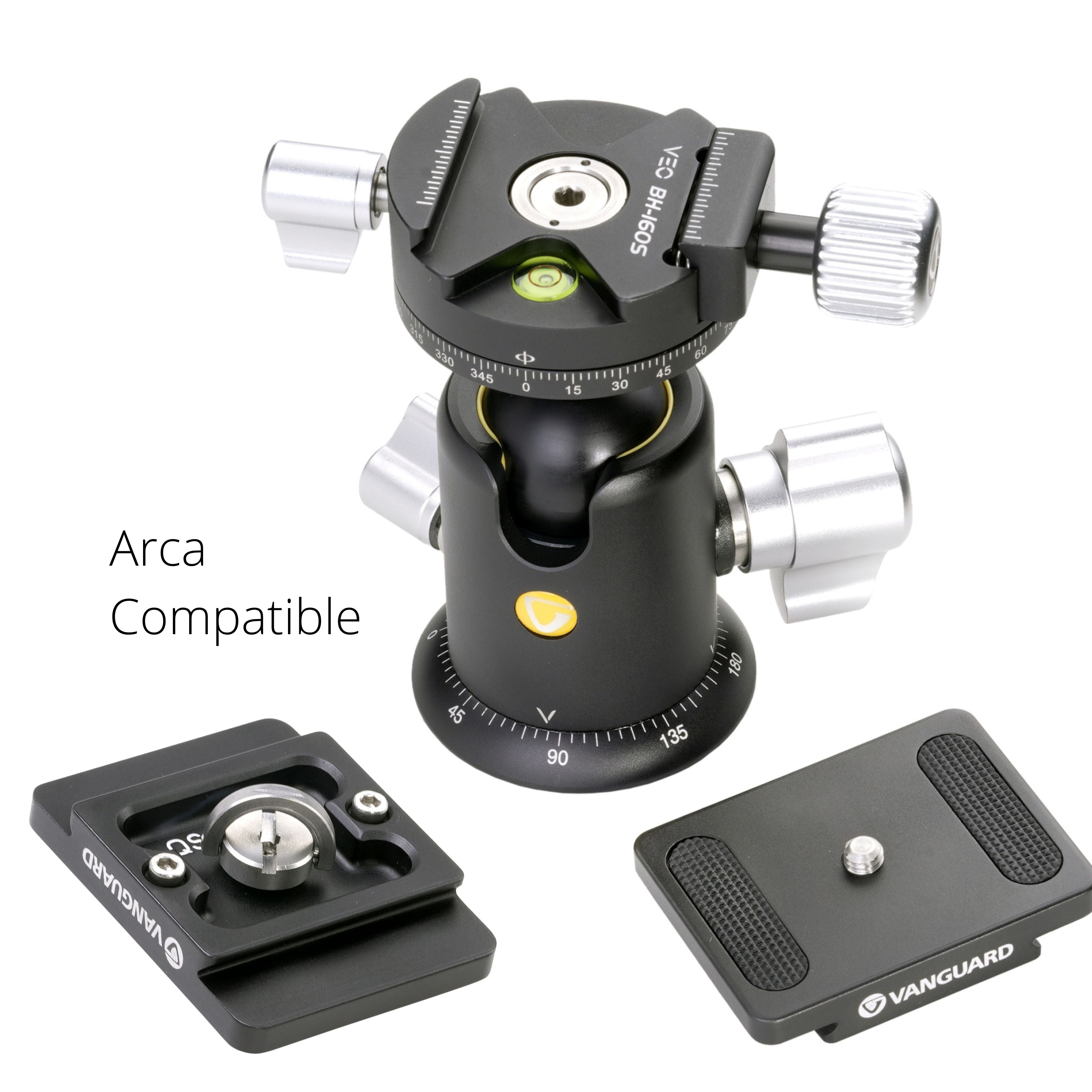

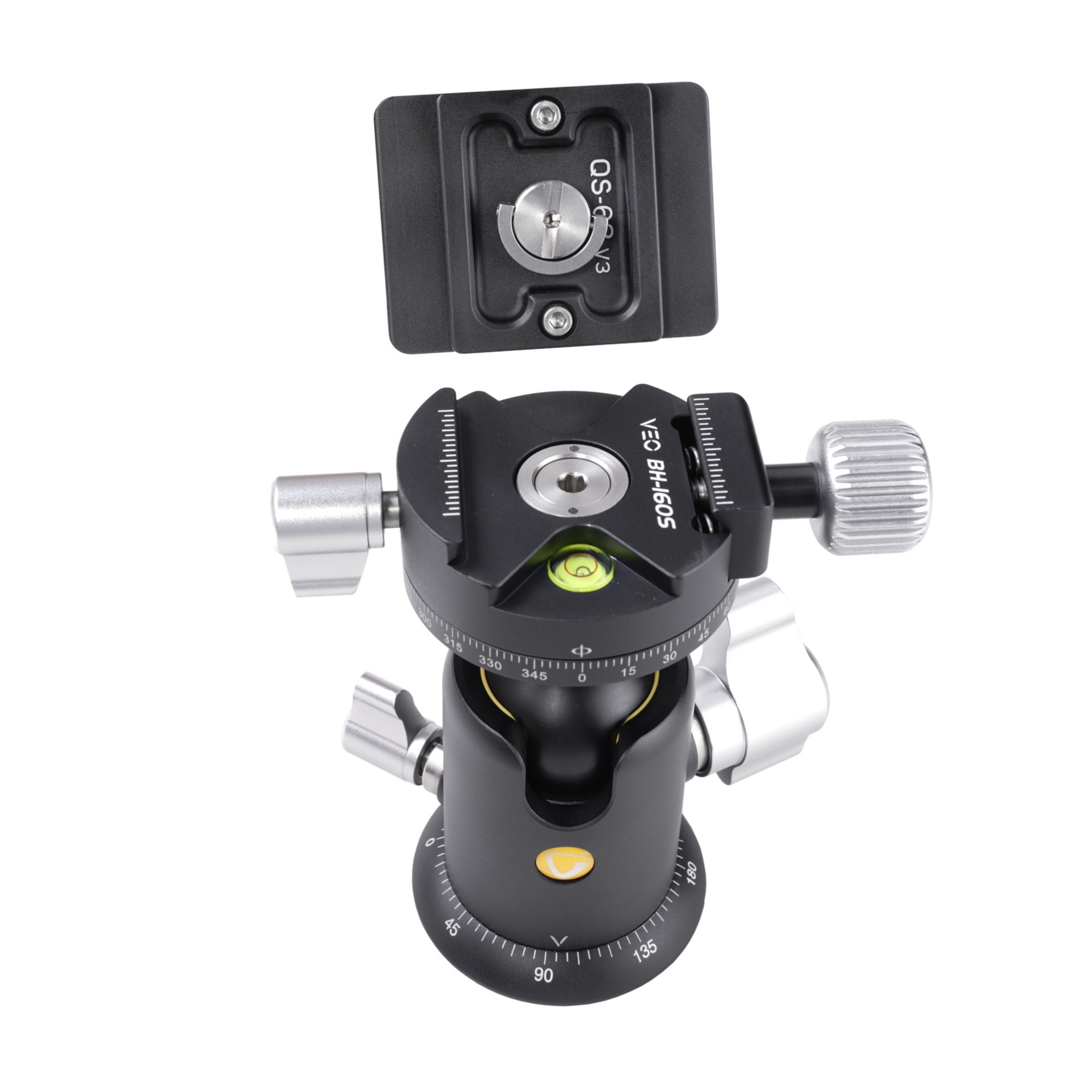

  • Arca compatible ball head with removable, anti-slip screws on the base of the quick release plate
  • Two 360° panning knobs - on the base and under the quick release plate
  • Easy-grip locking knobs let you loosen and tighten with ease

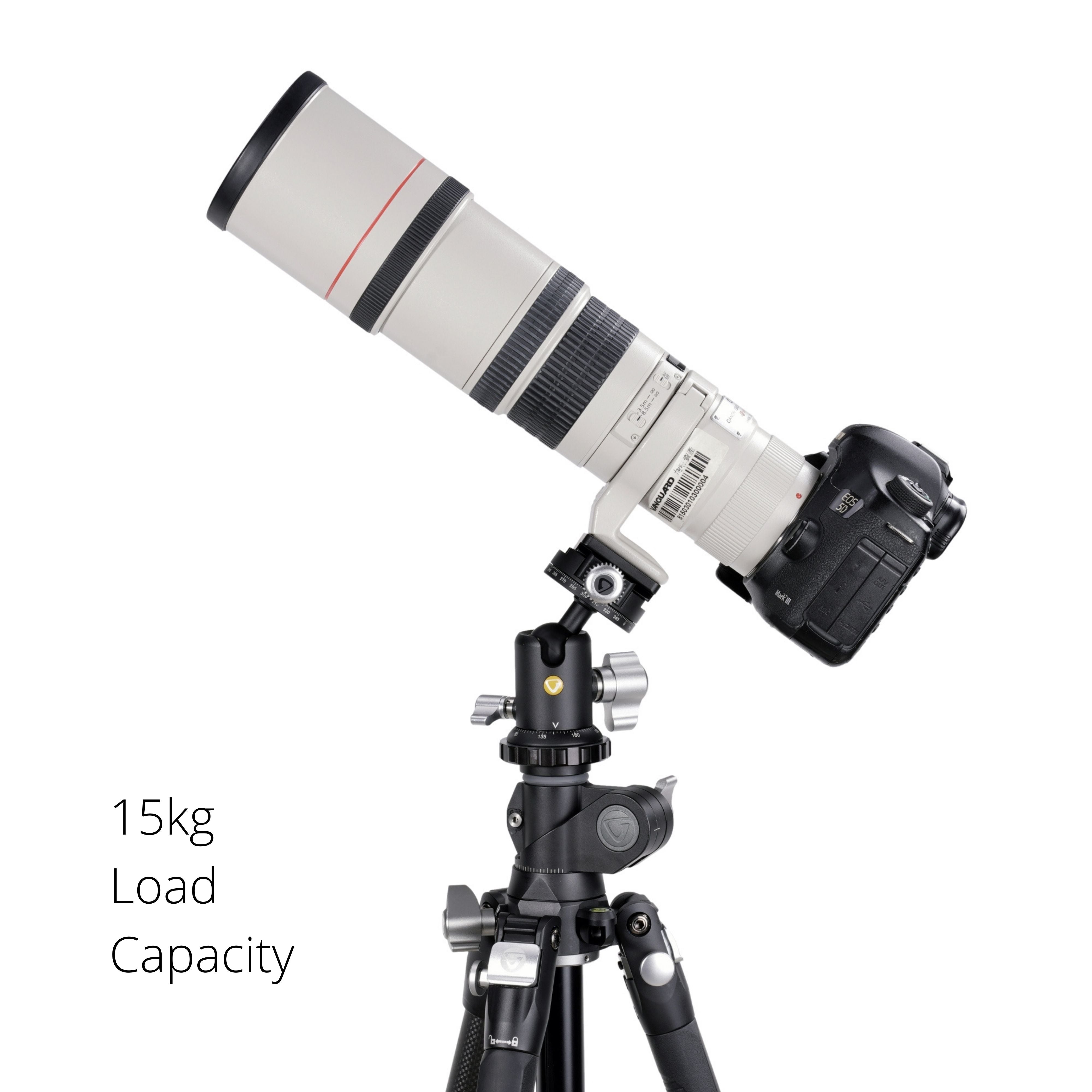

  • 15kg load capacity
  • 58mm diameter base - perfect for full-sized tripods

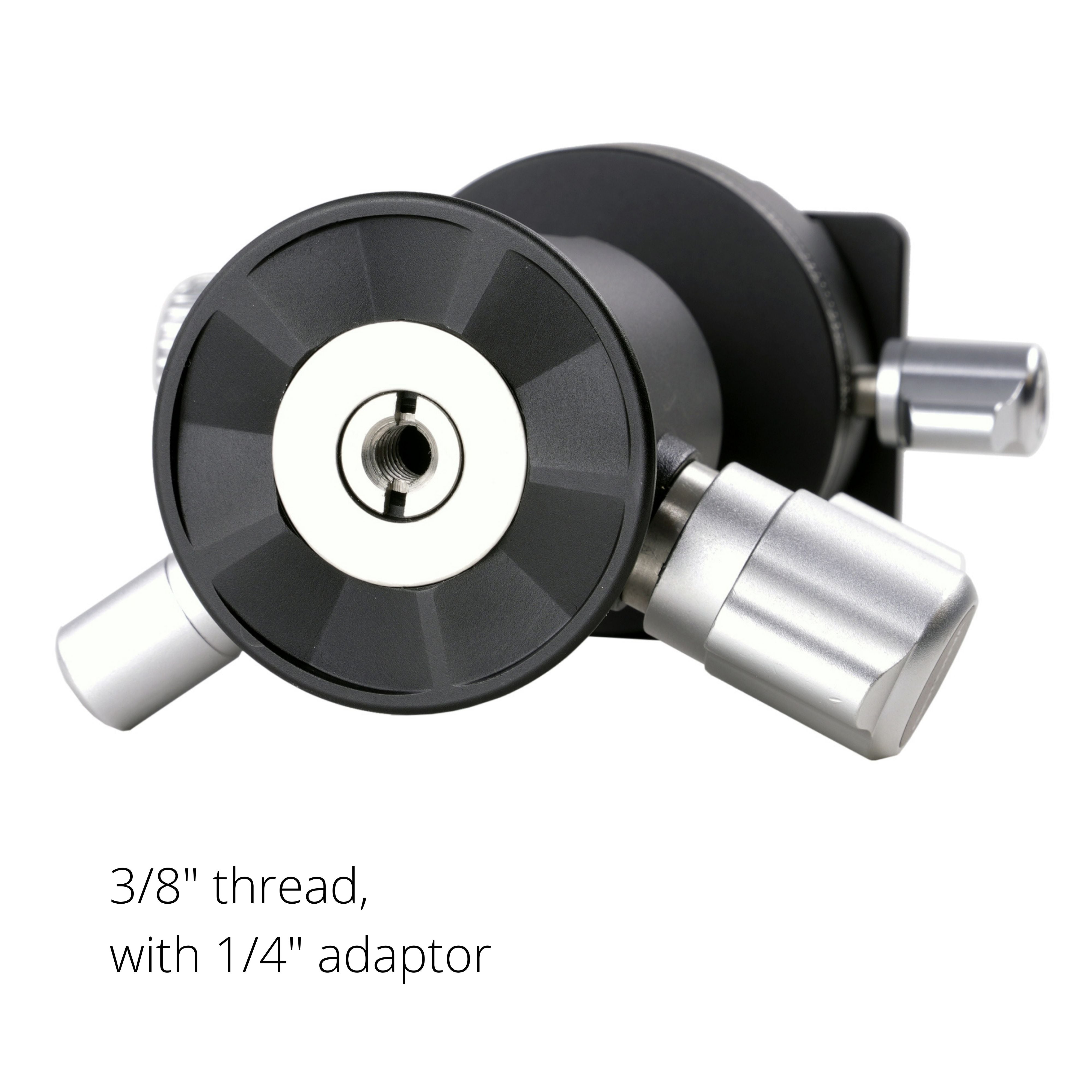

  • Fits any tripod and includes fittings for 3/8" or 1/4" threads
  • Precision CNC machined from aircraft-grade aluminium to be lighter, stronger and more durable

Once you've experienced the versatility of the new dual axis system, you'll never go back.

For travel/mid-sized tripods, check out the VEO BH-110S with a 10kg load capacity.

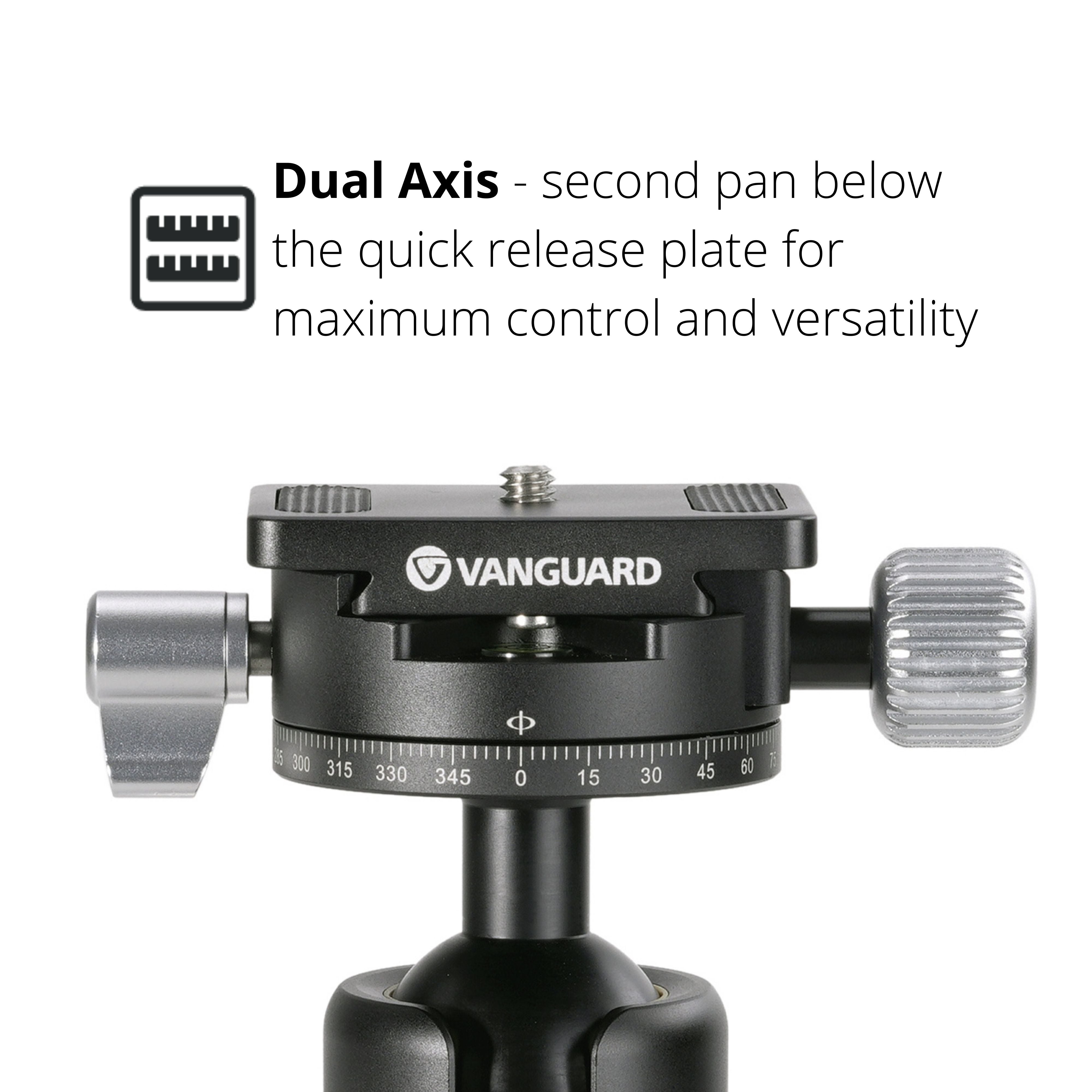

The VEO BH-160S is an Arca compatible ball head that introduces a second pan axis under the quick release plate mount to deliver maximum control in framing your perfect shot.

The dual axis ball head allows you make micro adjustments using the most appropriate axis, without needing to loosen the main ball joint and risk losing the overall setup.  Alternatively, you can shoot panoramas whatever angle your tripod is set up at.

Despite weighing in at just 490g, this head has a maximum load capacity of 15kg and is machined from aircraft grade aluminium using the latest CNC technology.  This means that as well as holding almost any kit, the movement is incredibly precise due to the mirror smooth finish that CNC production delivers.

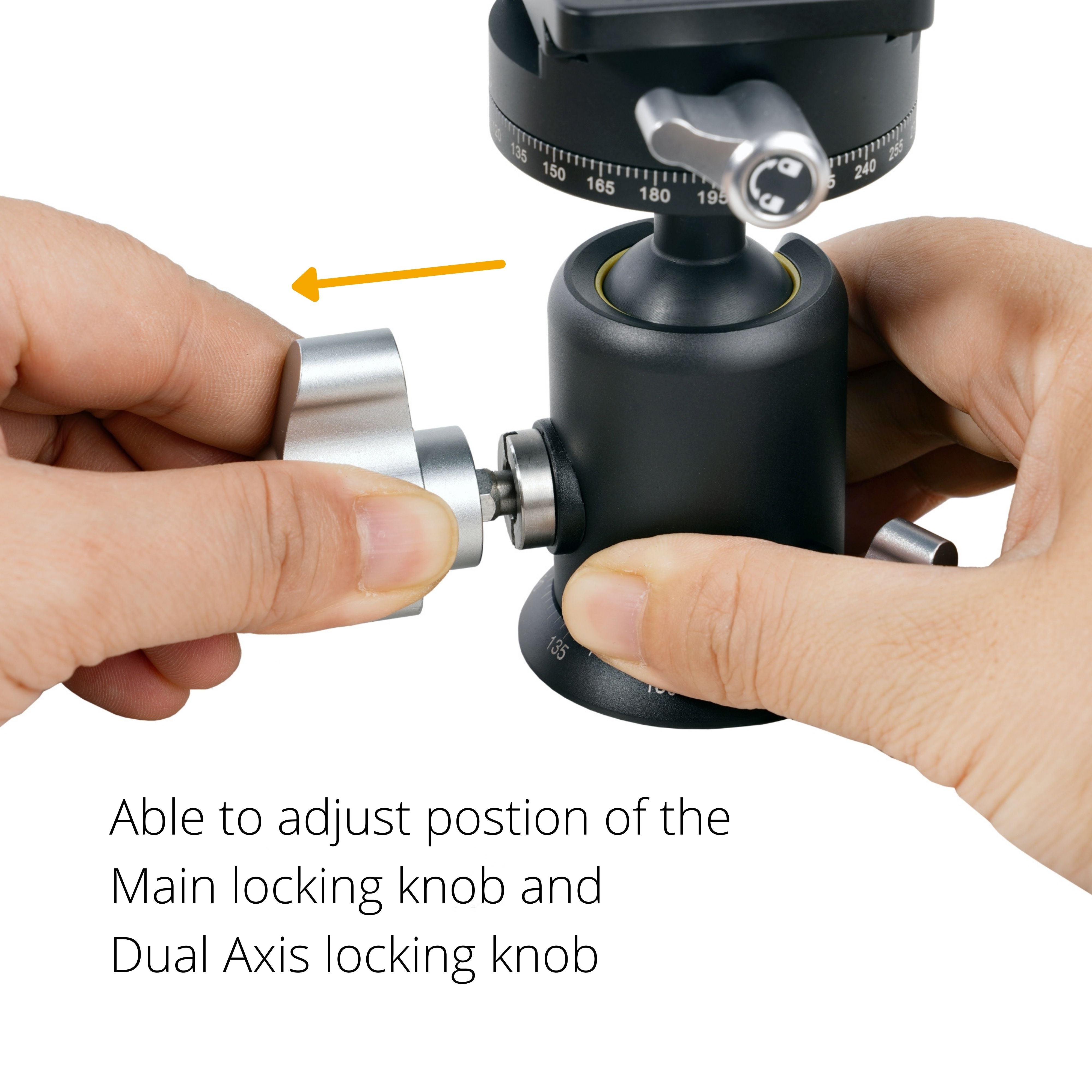

The head includes easy grip locking knobs, and the top pan locking knob and the main ball locking knob can be pulled out and repositioned to more convenient positions, without affecting the solidity of the head.

With a 58mm diameter base and the ability to fit any tripod (either 1/4" or 3/8"), this head is perfect for full-sized tripods, whatever the brand and comes as standard with:

Full Sized Tripods:

Travel Sized Tripods:

The head comes in two sizes, and you can see the key differences here:


Head Style Ball Head Ball Head
Handles None None
Model Number VEO BH-160S VEO BH-160S
Arca Swiss Compatible Yes Yes
Quick Shoe QS-62 V3 QS-62 V3
Maximum Load Capacity 33lbs 15kg
Separate Pan Lock Yes (two) Yes (two)
Friction Control No No
Swivel 360° 360°
Spirit Bubble Levels 1 1
Length 4 1/2 inches 115mm
Height 4 2/5 inches 112mm
Base Diameter 2 4/5 inches 58mm
Head Attachment Thread 1/4" and 3/8" 1/4" and 3/8"
Weight 1.1lbs 490g
Accessories Quick Shoe and 1/4" to 3/8" adaptor thread included Quick Shoe and 1/4" to 3/8" adaptor thread included
Suitable For Mirrorless Yes Yes
Suitable For DSLR Yes Yes
Suitable For PRO Kit Yes Yes
Warranty 2 Years 2 Years
Extended Warranty 10 Years 10 Years
Series VEO Heads VEO Heads
Colour Black Black
Other Dual Axis for precise control Dual Axis for precise control
