ENDEAVOR ED 8x42 Binocular

Item: ENDEAVOR ED 8420

Delivery: FREE

£279.99 In Stock


Endeavor ED binoculars provide outdoor enthusiast high-performance features at an incredible value.

  • 8x magnification
  • 42mm diameter objective lens
  • Premium ED Glass delivers exceptional detail and brilliant colours
  • Advanced MultiGuard® coatings for higher light transmittance
  • Modern ergonomics with an open-bridge design
  • BAK4 Roof Prisms enhance image resolution
  • Twist Eye Cups and Locking Diopter for fast focus
  • Large, precise focus wheel
  • 100% waterproof and fogproof

Product Reviews:

Related Product Reviews:

Endeavor ED II 8x42 features Japanese HOYA ED Glass and the Endeavor ED IV 8x42 features Japanese HOYA ED Glass and SK-15 roof prisms as a step up in quality through the ranges

If you are looking to digiscope, you can use the VEO PA-62 which will fit any smartphone between 59mm and 90mm wide.



Vanguard's Endeavor ED 8x42 binoculars deliver sharpness and clarity like never before, with exceptional light transmission and remarkable color resolution and contrast.

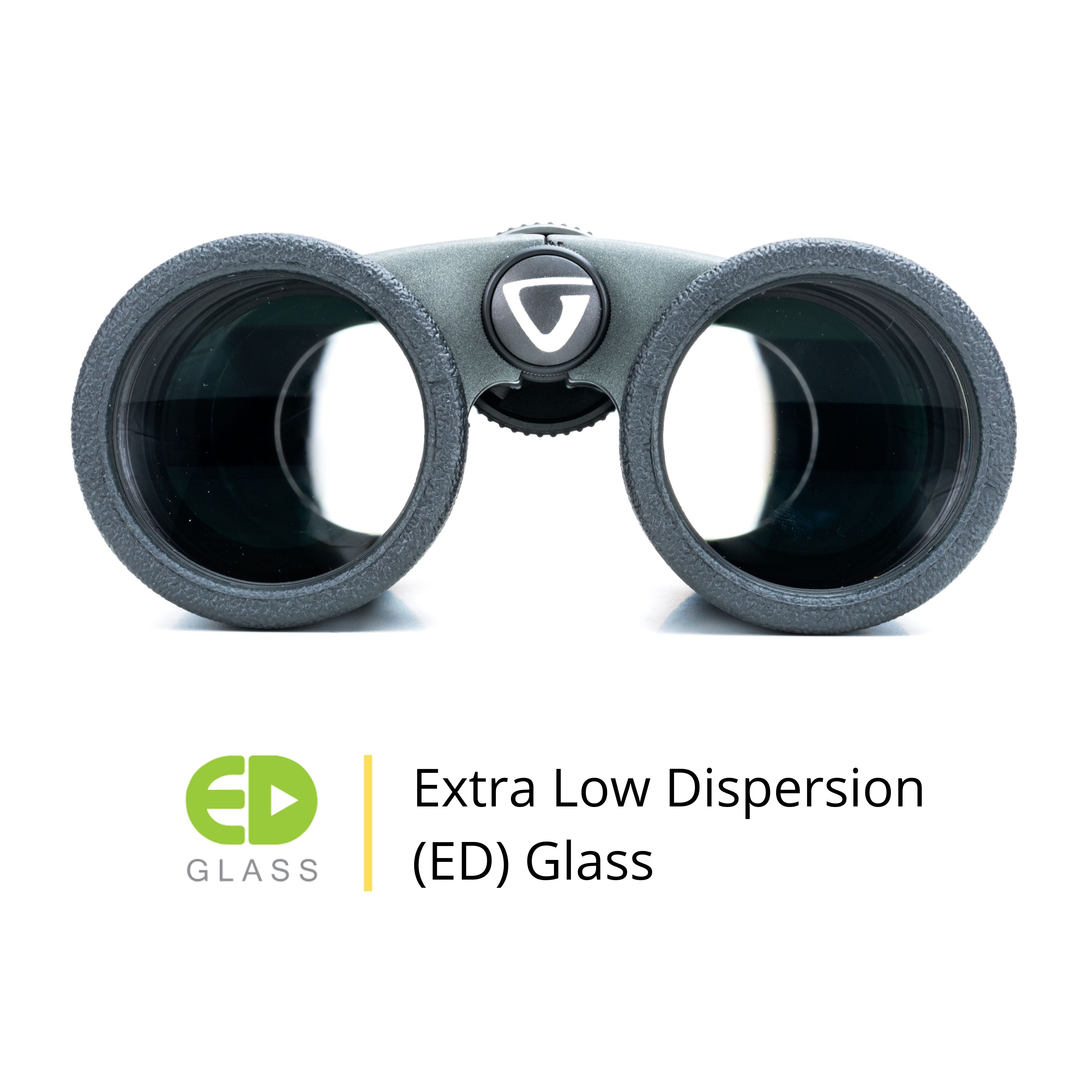

Extra Low-Dispersion (ED) glass effectively reduces colour dispersion and enhances color resolution and contrast. ED glass aligns the colors to meet at the same focal plane to reduce the chromatic aberration and obtain the highest resolution and image contrast, delivering a sharp image.

P2 Phase Coating was developed for enhanced image clarity and true color reproduction. Vanguard's P2 phase-coated BaK4 prisms creates crystal clear images and high resolution observation. The V-Max Silver Coating lens treatment provides crisper, more vivid images and sharper contrast due to impressive light reflection. Emerald Coating is specifically designed to provide the full spectrum of colour within the band of green tones. This coating is essential for nature enthusiasts, because it ensures the most vivid and natural shades of green.

Anti-Reflection Coating on all air-to-surface lenses dramatically minimizes light reflection on the lens. Coupled with fully multi-coated treatment, it ensures near perfect light transmission and image recognition, enabling the brightest images possible, even on the sunniest days.

The Endeavor ED features an ergonomic open-bridge design that's comfortable to use for prolonged periods, along with a wide viewing angle. Nitrogen-charged and o-ring sealed, the Endeavor ED is waterproof and fogproof to take on challenging weather conditions.

Key Product Features include:

  • 8x magnification
  • 42mm objective lens
  • Extra Low-Dispersion (ED) Glass
  • Open bridge design
  • Waterproof and Fogproof
  • Viewing angle 7.0° delivering field of view of 122m/1000m

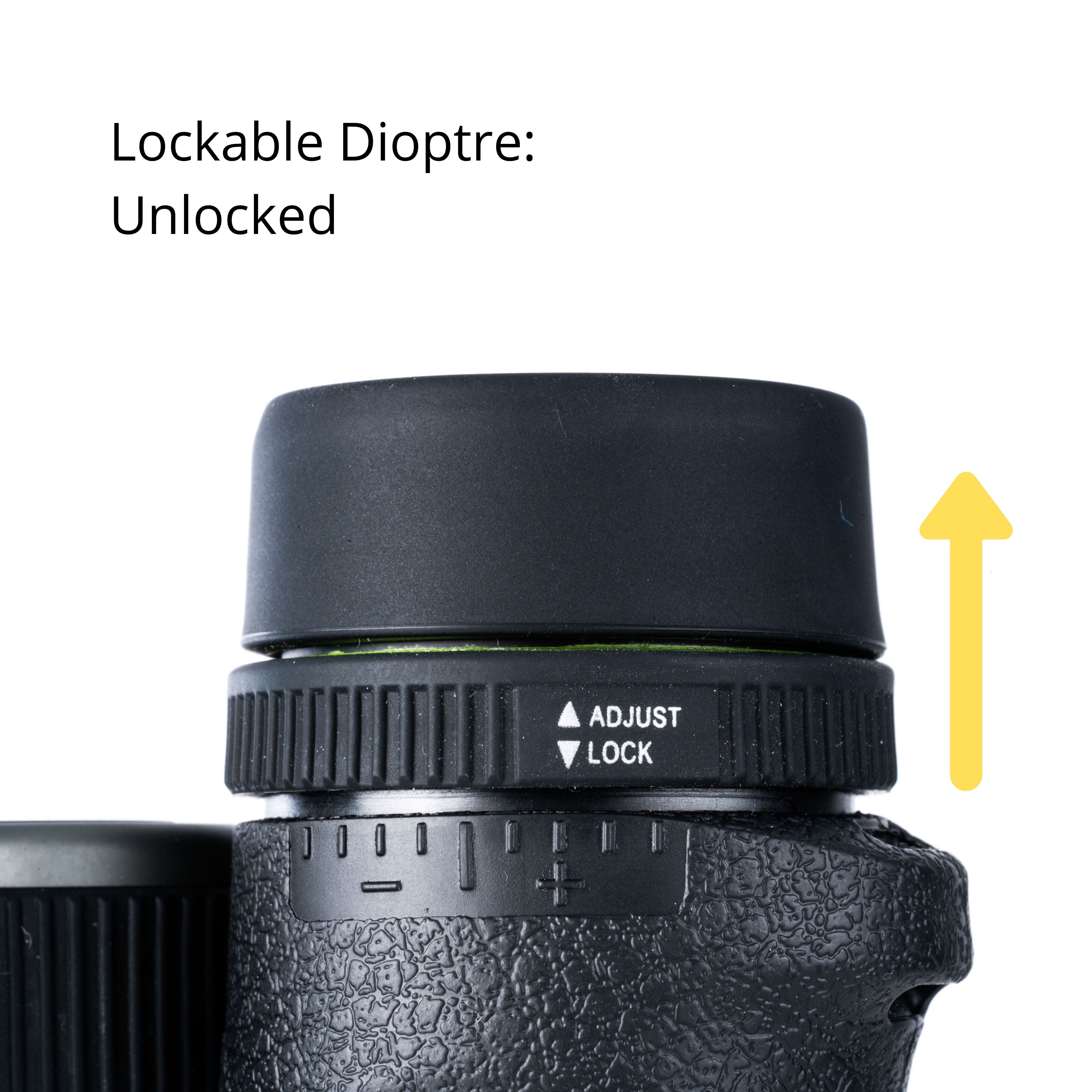

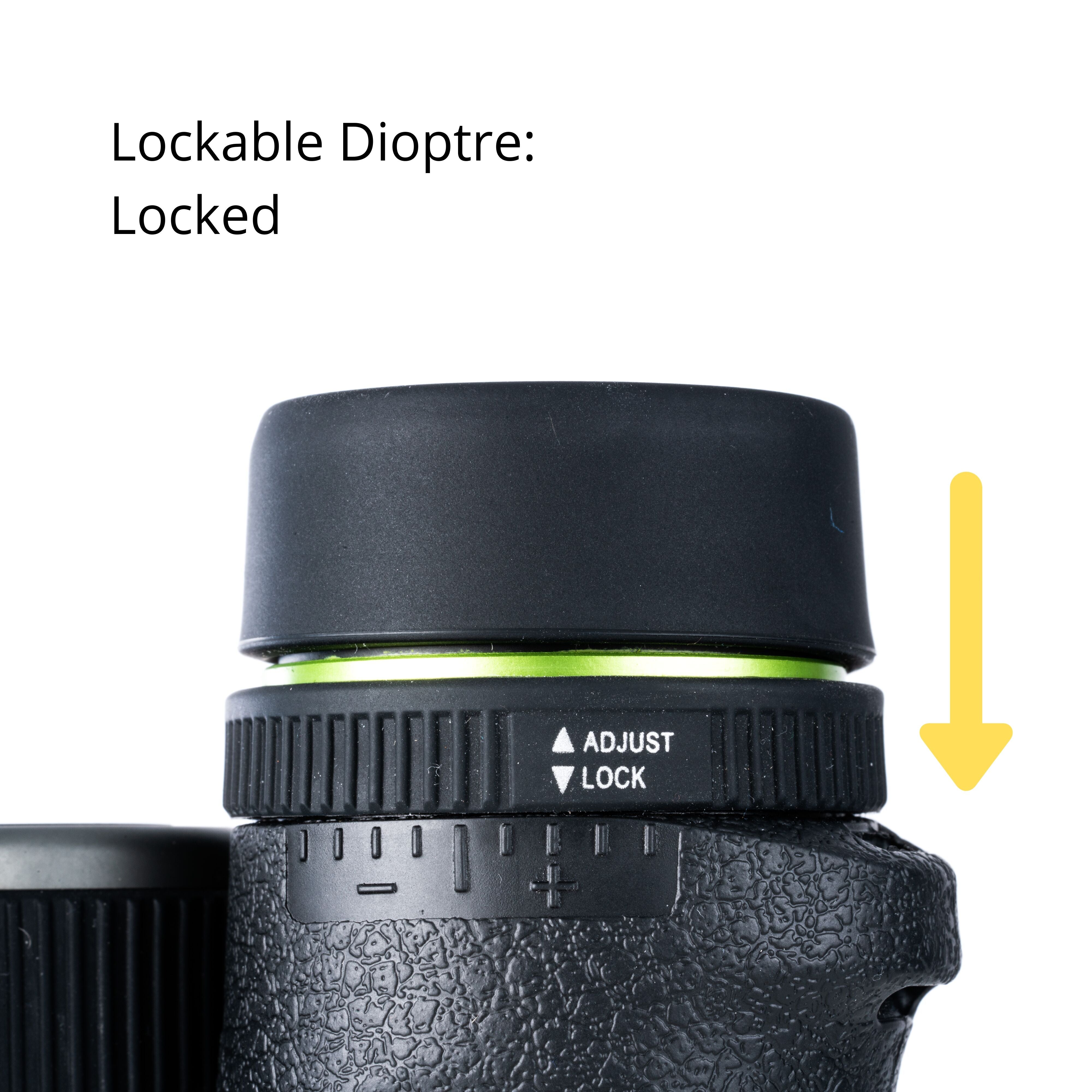

  • Locking dioptre ring


Over time, parts can get damaged or lost, no matter mow much care is taken.  Here are the most common spare you can purchase.

Optics Style Binocular Binocular
Magnification 8x 8x
Objective Lens 1.65 inches 42mm
Glass Extra Low Dispersion (ED) Glass Extra Low Dispersion (ED) Glass
Prism Type BaK4 BaK4
Lens Coating Fully multi-coated Fully multi-coated
View Angle 7.0 7.0
Field of View 367 feet/1000 Yards 122m/1000m
Near Focus 5.9 feet 1.8m
Body Material Magnesium Alloy in rubber sleeve Magnesium Alloy in rubber sleeve
Weight 1.6lbs 730g
Dimensions 6.1 x 5.1 inches 154 x 130 x 53mm
Waterproof Yes Yes
Fogproof Yes Yes
Lockable Dipotre Yes Yes
Exit Pupil 0.20 inches 5.2mm
Eye Relief 0.75 inches 19.0mm
Twilight Factor 19.5 19.5
Relative Brightness 28.0 28.0
Eyepiece Diameter 1 7/10 inches (can use VEO PA-62 for digiscoping) 42.8mm (can use VEO PA-62 for digiscoping)
Warranty 5 Years 5 Years
Extended Warranty 10 Years 10 Years
Series Endeavor ED Endeavor ED
Application Birdwatching, Nature & Outdoor Birdwatching, Nature & Outdoor
Colour Black Black

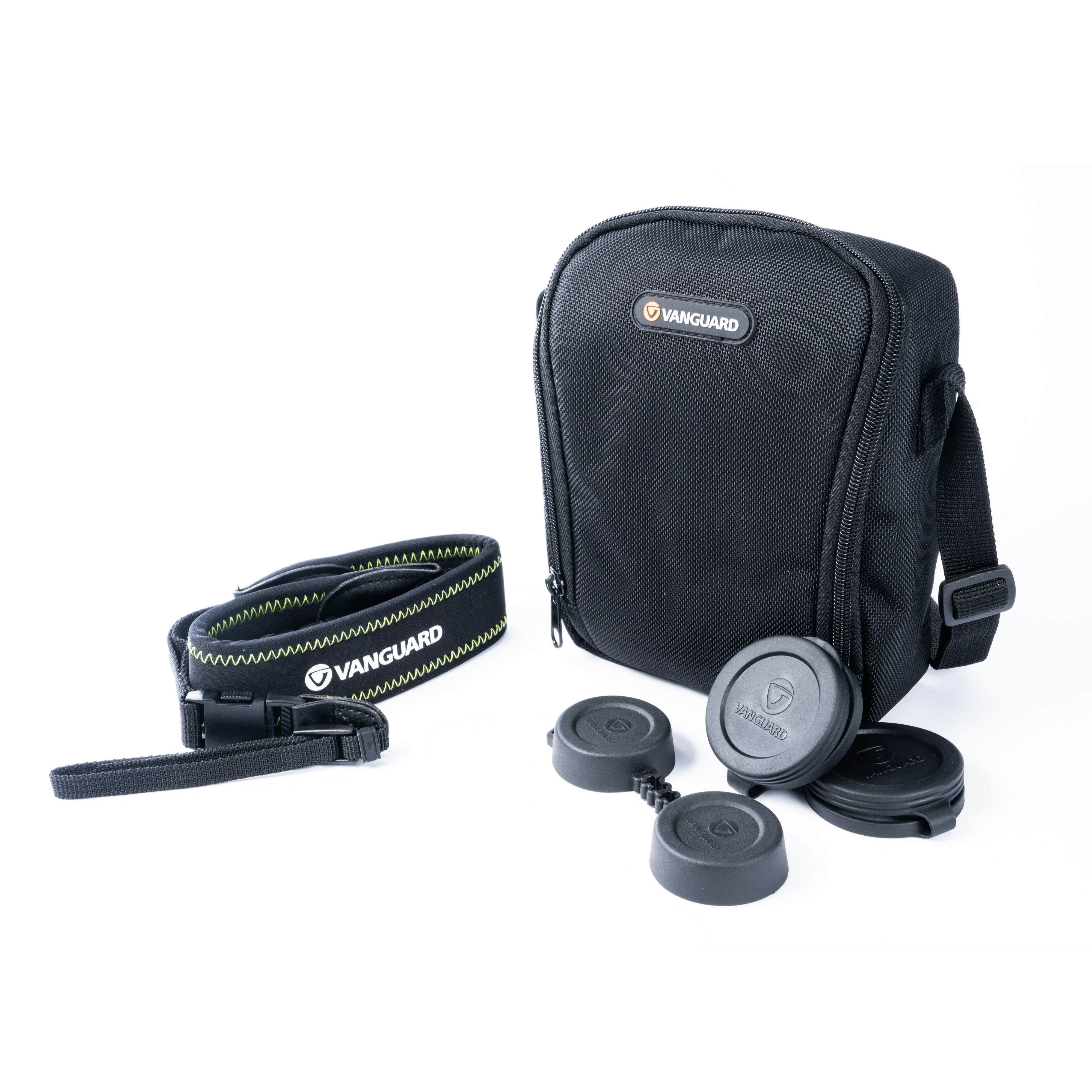

Accessories Binocular carry case, neck strap, eyepiece lens covers & Objective lens covers Binocular carry case, neck strap, eyepiece lens covers & Objective lens covers

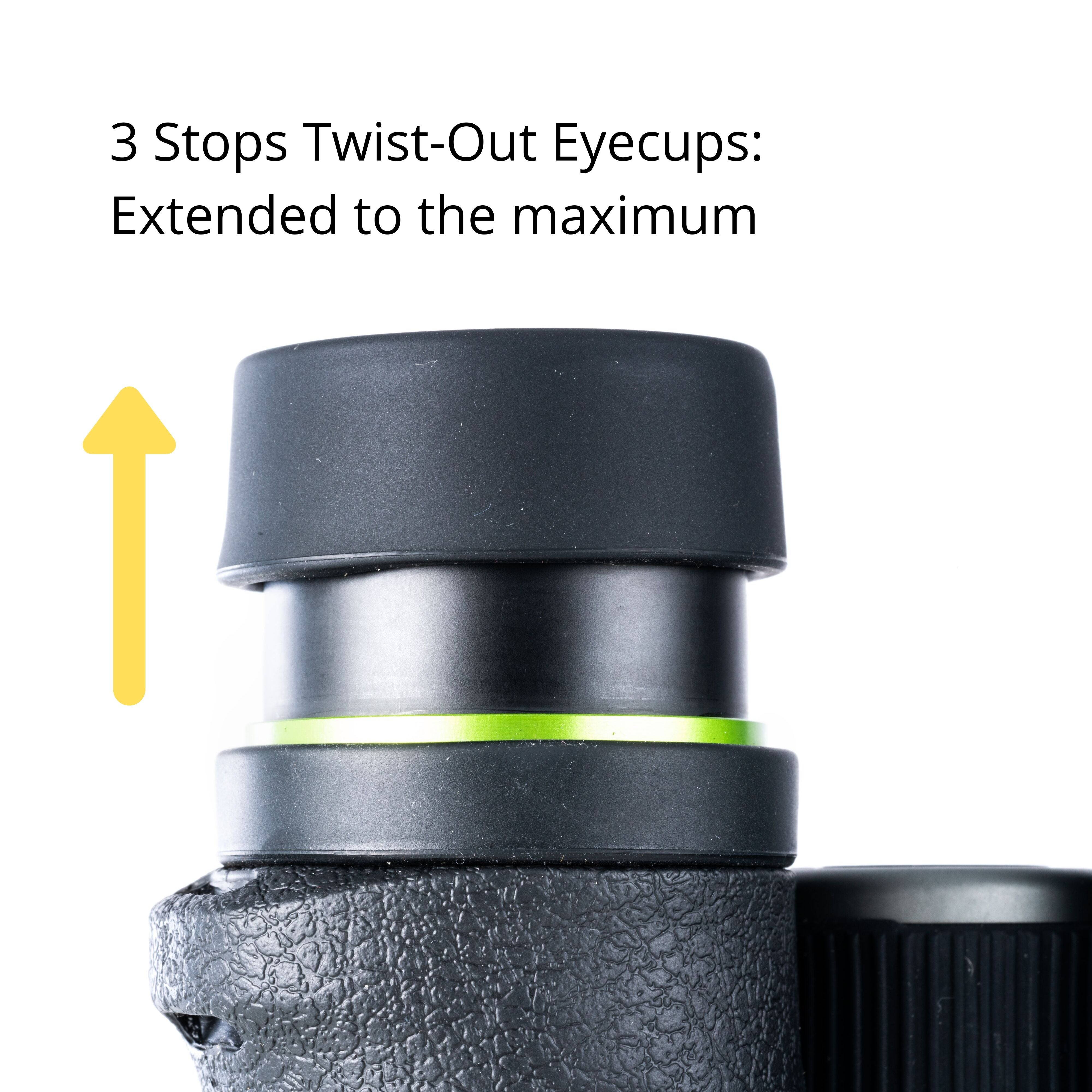

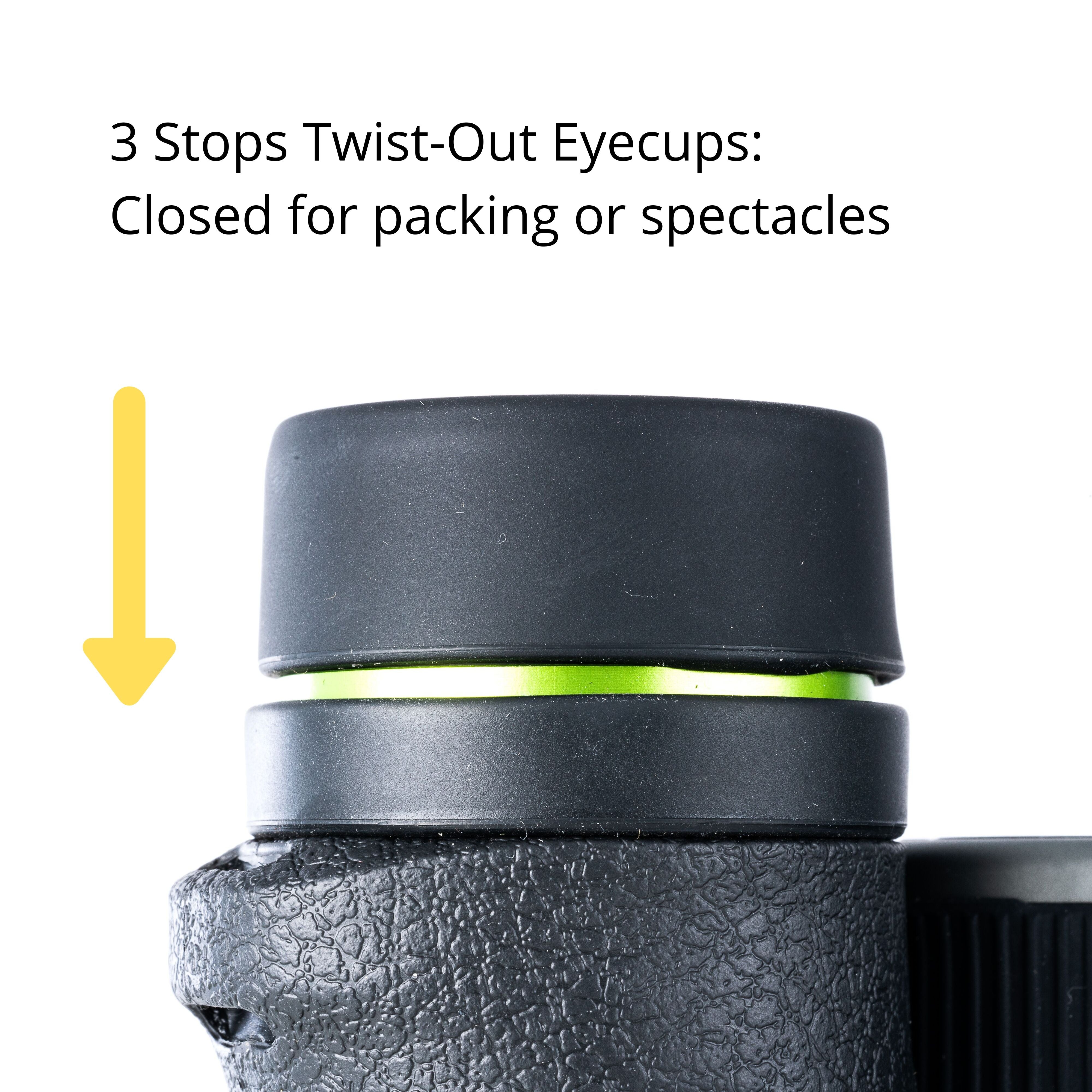

Other 3 stops Twist-out eyecups 3 stops Twist-out eyecups
