Alta PH-114V Video Pan Head

Alta PH-114V Video Pan Head

Item: ALTA PH-114V

Delivery: FREE

£99.99 In Stock

Overview

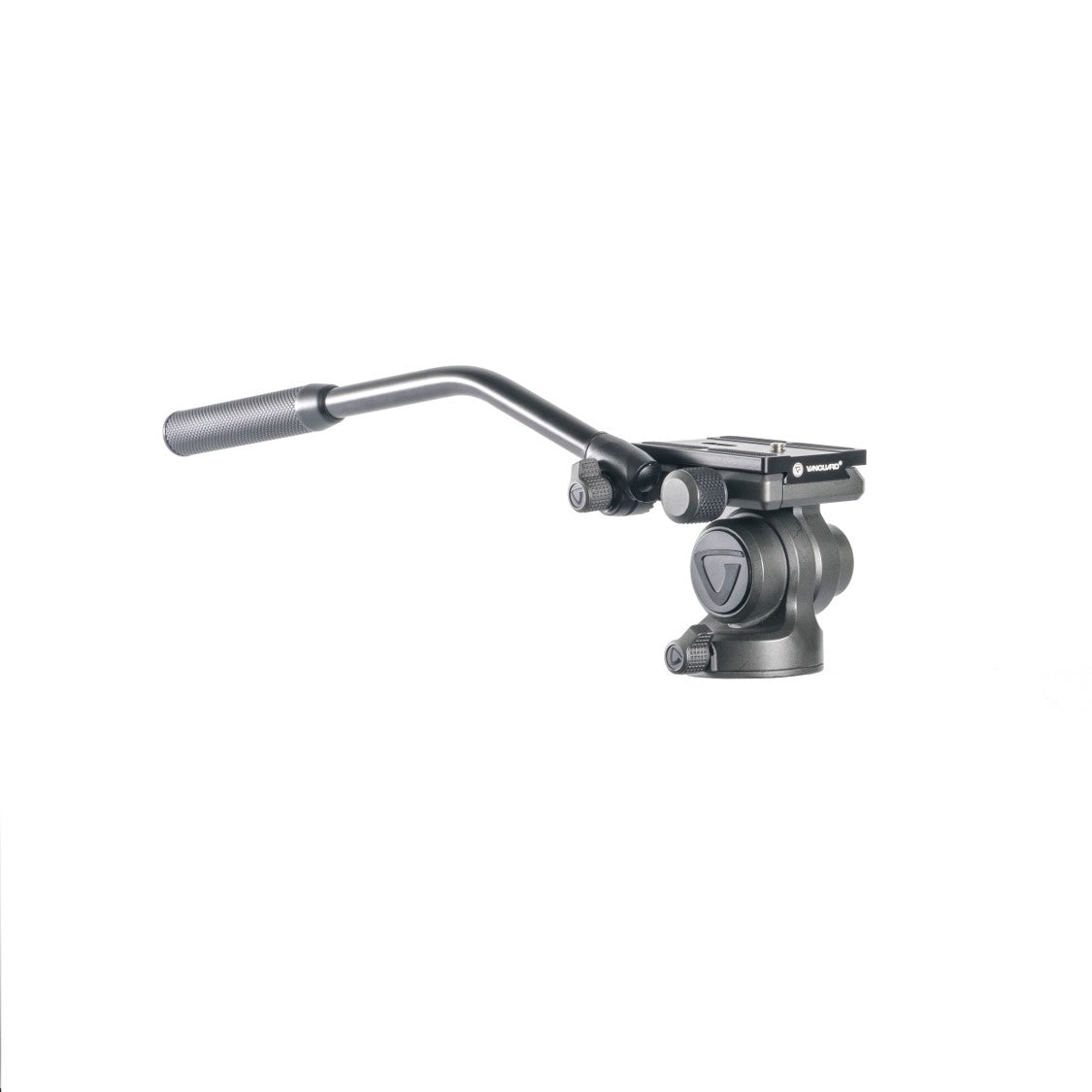

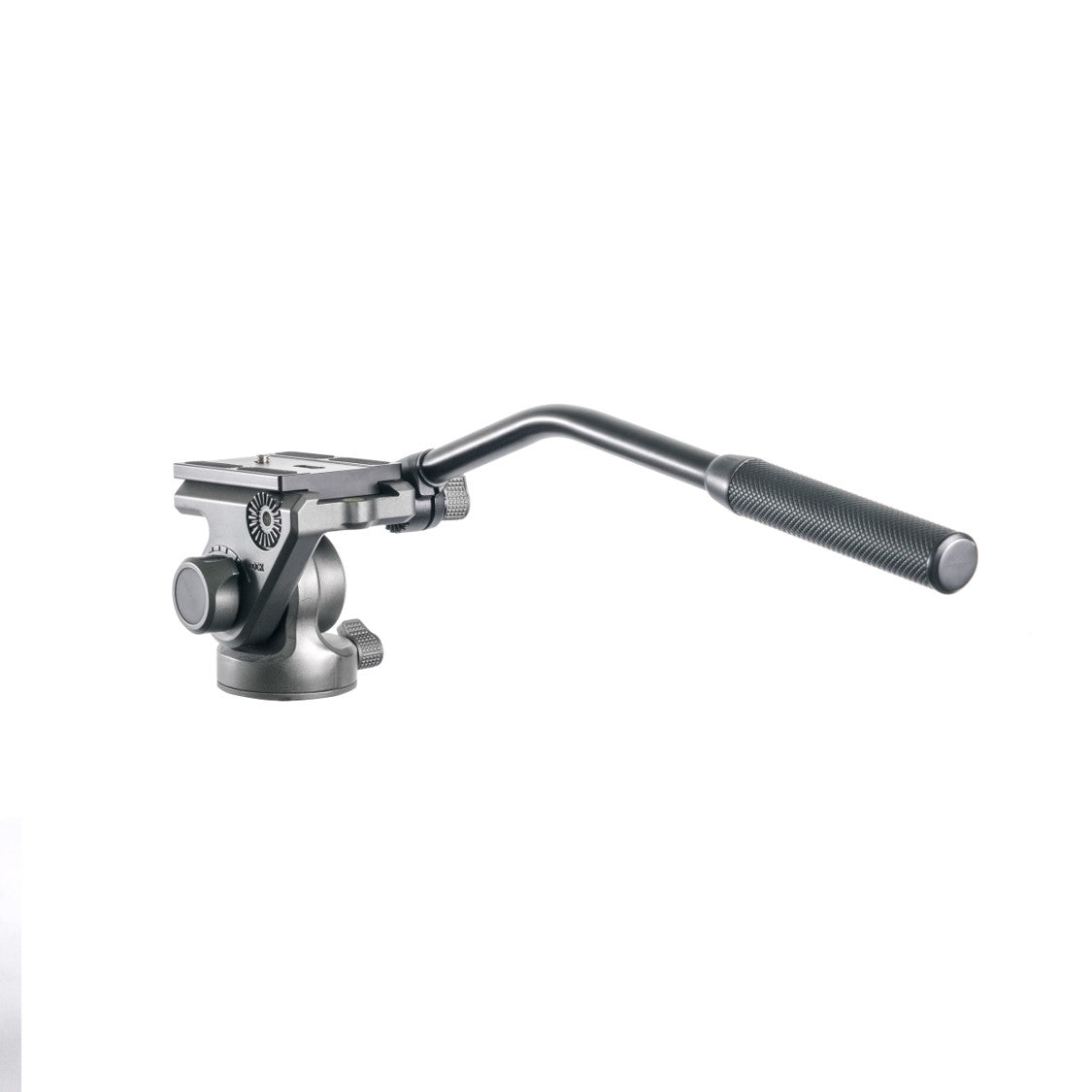

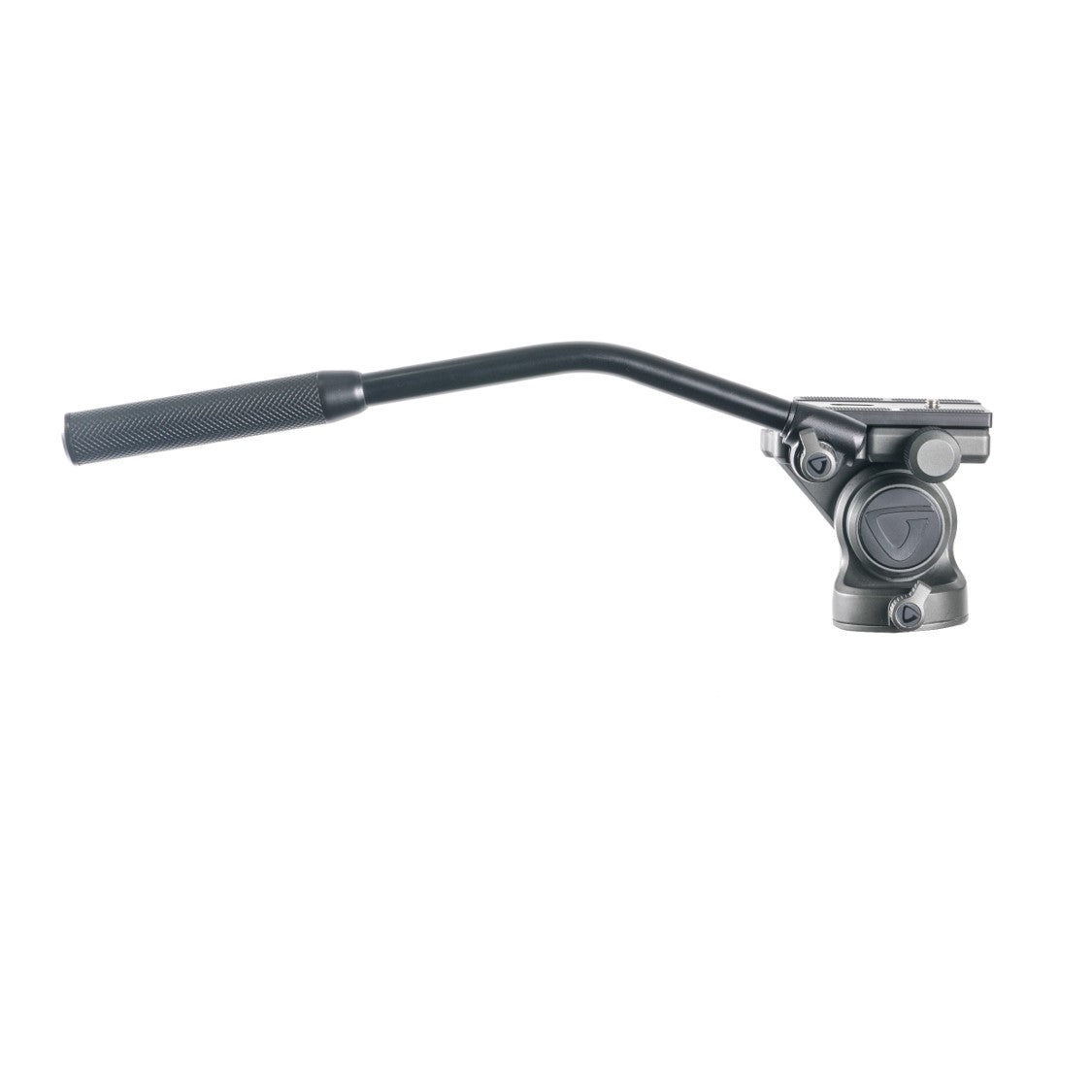

The ALTA PH-114V is a lightweight video head with fluid action movements, incorporates an Arca-type quick release system and has an ergonomic long handle for smooth pans and tilts.

  • Lightweight Magnesium alloy construction provides long-lasting performance and durability
  • Fluid action movements
  • Ergonomic long handle for smooth pans and tilts
  • Bubble level for precise leveling
  • High working load performance 17.6lbs./8kg
  • Arca-type quick release system with a built-in safety pin
  • 58mm Pan Head Base
  • Easily Connects to all types of tripods using the 3/8”-16 receiver
£99.99

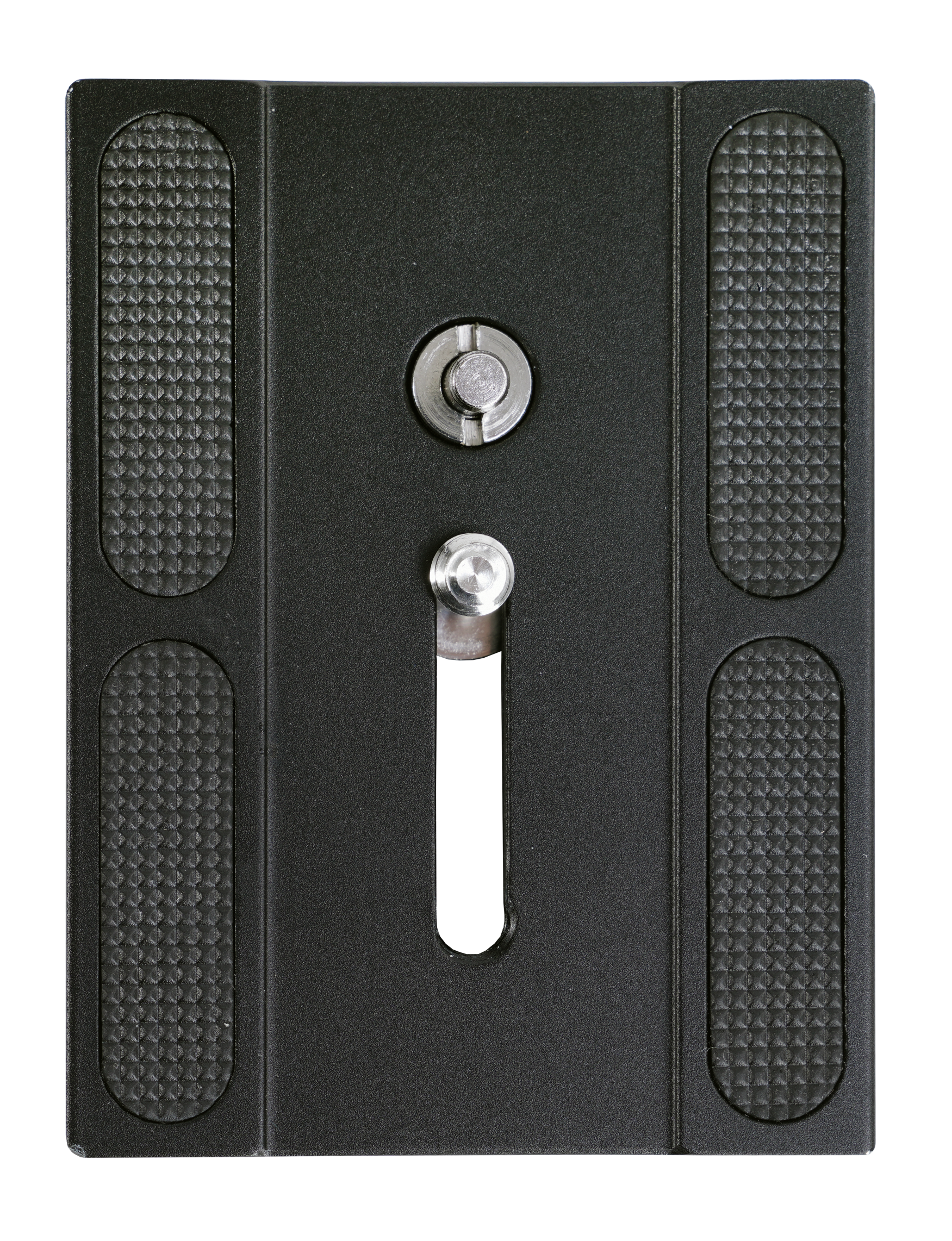

The ALTA PH-114V is a lightweight video head with fluid action movements, incorporates an Arca-type quick release system and has an ergonomic long handle for smooth pans and tilts. Four lock/unlock knobs are positioned ergonomically to provide easy access for setting up the pan bar, locking your gear securely, and providing adjustments for pans and tilts. The Arca-type quick release plate QS-61 is 80mm/3.2in. long has 2 screws (1 static, 1 sliding) and allows for gear to be positioned to move forward or back on the video head easily allowing you to balance gear on the top of the tripod. The second screw acts like an anti-twist pin.

The built-in rosettes along either side of the head allow for mounting of one pan bar or if desired a second pan bar can be added for additional control.

Head Style 2-way Video Pan Head 2-way Video Pan Head
Handles One Long Handle One Long Handle
Model Number Alta PH-114V Alta PH-114V
Arca Swiss Compatible Yes Yes
Quick Shoe QS-61 QS-61
Maximum Load Capacity 17.6lbs 8kg
Separate Pan Lock Yes Yes
Friction Control Yes Yes
Swivel 360 degrees 360 degrees
Frontal Tilt -45 to 90 degrees -45 to 90 degrees
Spirit Bubble Levels 1 1
Height 3 3/4 inches 95mm
Base Diameter 2 1/4 inches 58mm
Head Attachment Thread 1/4 and 3/8 inch 1/4 and 3/8 inch
Weight 23.2 oz 660g
Accessories Quick Shoe and 1/4 inch to 3/8 inch adaptor thread included Quick Shoe and 1/4 inch to 3/8 inch adaptor thread included
Suitable For Mirrorless Yes Yes
Suitable For DSLR Yes Yes
Suitable For PRO Kit Yes (Smaller Kit) Yes (Smaller Kit)
Warranty 2 Years 2 Years
Extended Warranty 10 Years 10 Years
Series Alta Heads Alta Heads
Colour Anthracite Anthracite
Other - -
