QS-45H 4-Sided Arca Compatible Quick Shoe
QS-45H 4-Sided Arca Compatible Quick Shoe
Item: VGTQS45H
Delivery: FREE
Overview
The QS-45H Quick Shoe is an Arca compatible quick release plate with a 1/4" camera screw and anti-slip rubber pads to provide a solid and steady link to your chosen head in just seconds.

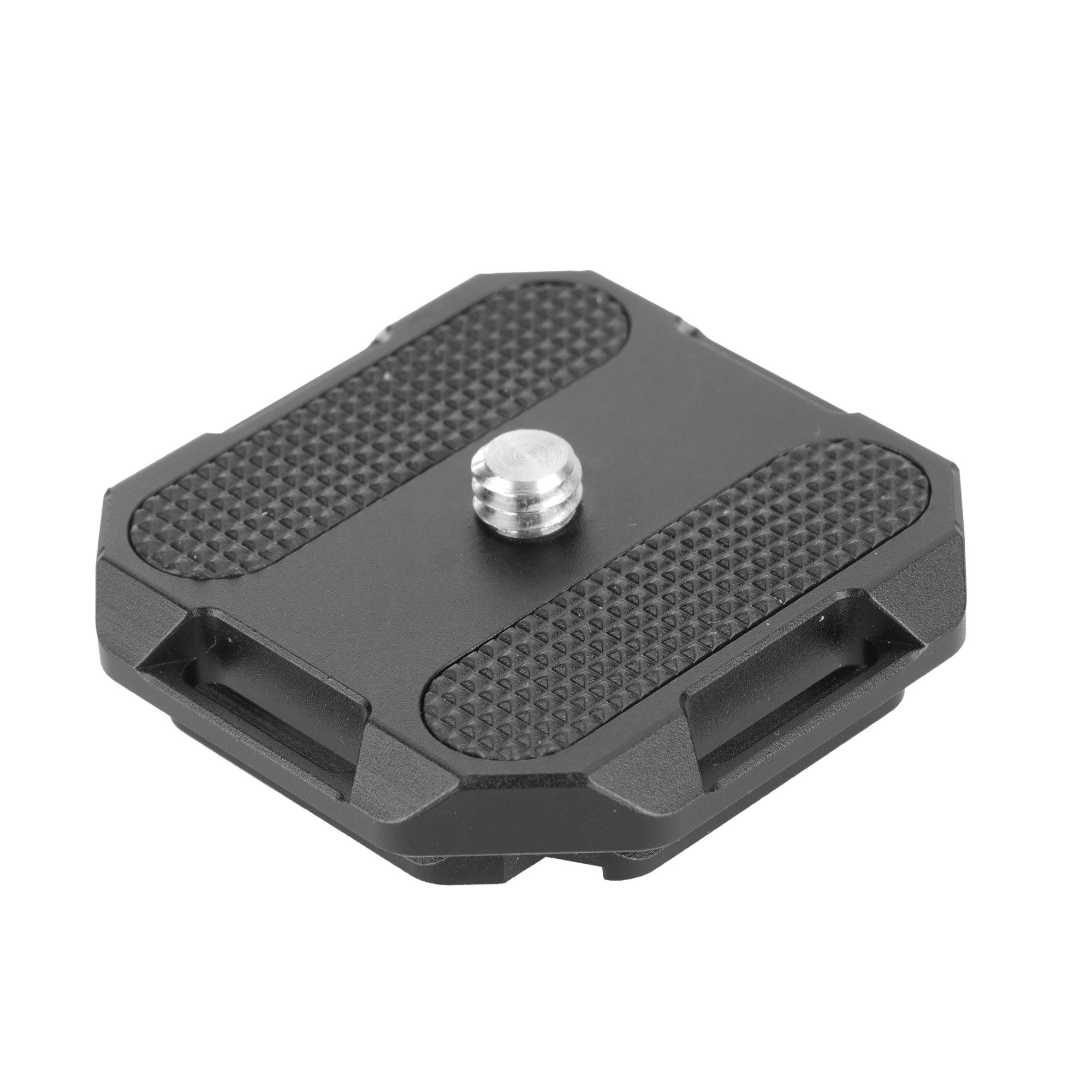

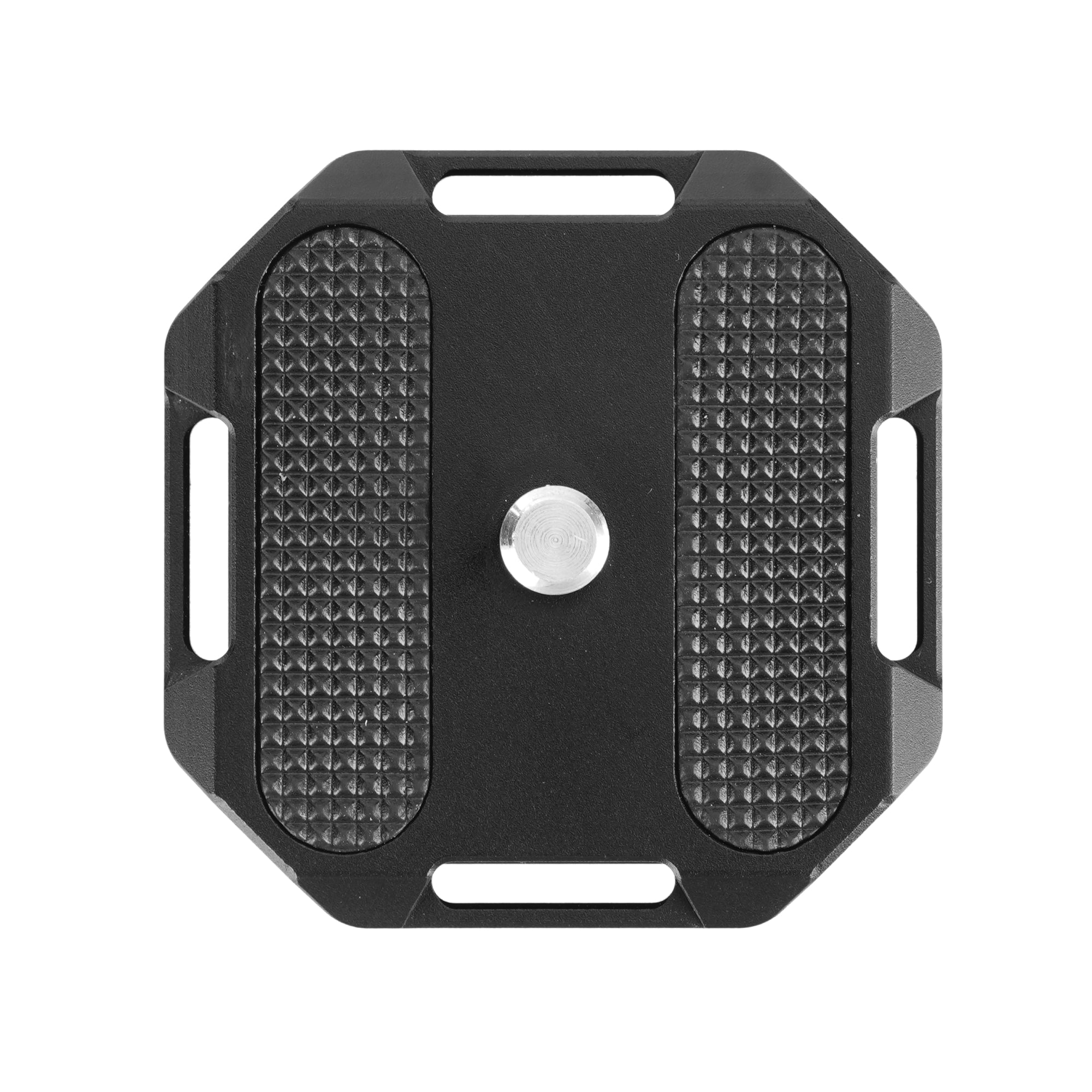

This quick shoe features two extended rubber strips for maximum grip, and with 4-sides to attach to the tripod head clamp where it can be positioned at 90° angles to allow a 2-way pan-head to do portrait shots, or just for maximum flexibility on any head.
On the base are two pins as a non-slip safety system for most Arca compatible heads, and these can be removed if needed.

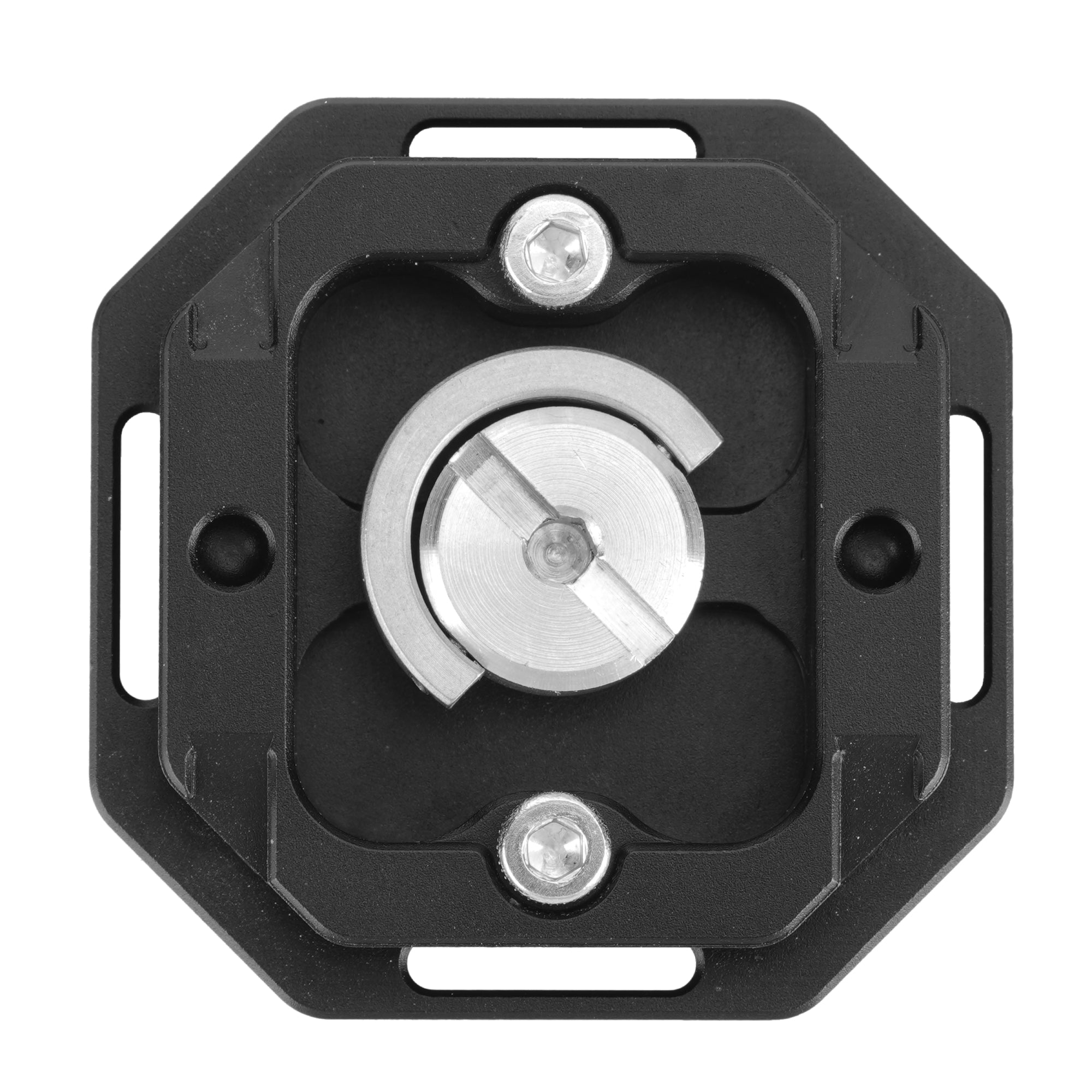

The quick shoe can be attached securely to the base of the camera by hand using the D-ring, using an Allen key or a coin/screwdriver
To see the full range of Arca compatible quick shoes, please Click Here
The Vanguard QS-45H Quick Shoe is an Arca compatible quick release plate with a 1/4" camera screw and anti-slip rubber pads to provide a solid and steady link to your chosen head in just seconds.
This quick shoe features two extended rubber strips for maximum grip, and with 4-sides to attach to the tripod head clamp, it can be positioned at 90° angles to allow a 2-way pan-head to do portrait shots, or just for maximum flexibility on any head.
On the base are two pins as a non-slip safety system for most Arca compatible heads, and these can be removed if needed.
The quick shoe can be attached securely to the base of the camera:
- By hand using the D-ring
- Using an Allen key
- Using a coin
- Using a screwdriver
This quick release plate also includes holes on each side to allow accessories such as straps to be attached.
Having the same number of quick release shoes as the number of cameras/scopes ensures that your kit can be changed without the need to transfer the quick release plate, saving time for professional and amateur photographers alike.
Compatible with any Vanguard Arca compatible head, but supplied with the following Vanguard heads:
- BH-45
- BH-50
- BH-60
- LB-40S
- LB-45S
- LB-50S
- LB-55S
- LBP-45S
- LBP-50S
- LBP-55S
- LBP-60S
As well as any other brand's Arca compatible head.
#ArcaQuickShoe
| Product Style | Quick Release Plate | Quick Release Plate |
|---|---|---|
| Arca Compatible | Yes | Yes |
| Top Plate Dimensions (L x W) | 1.7 x 1.7 inches | 45 x 45mm |
| Top Plate Shape | Square | Square |
| Weight | 0.1lbs | 33g |
| Base Dimensions (L x W) | 1.50 x 1.50 inches | 38 x 38mm |
| Able To Rotate By 90° On Tripod Head | Yes | Yes |
| Camera Attachment Thread Size | 1/4 inch | 1/4 inch |
| How Tightens Onto Camera | D-Ring, Slot (for coin or screwdriver) or Allen Key | D-Ring, Slot (for coin or screwdriver) or Allen Key |
| Anti Twist Pin | No | No |
| Able To Adjust Thread Position On Plate | No | No |
| Warranty | 1 Year | 1 Year |
| Extended Warranty | 4 Years | 4 Years |
| Series | Quick Shoe | Quick Shoe |
| Other | Holes in side to attach accessories like selected camera straps | Holes in side to attach accessories like selected camera straps |
